Multiple Switch

The continuity of multiple switch is described in two ways as shown below.

• The switch chart is used in schematic diagrams.
• The switch diagram is used in wiring diagrams.

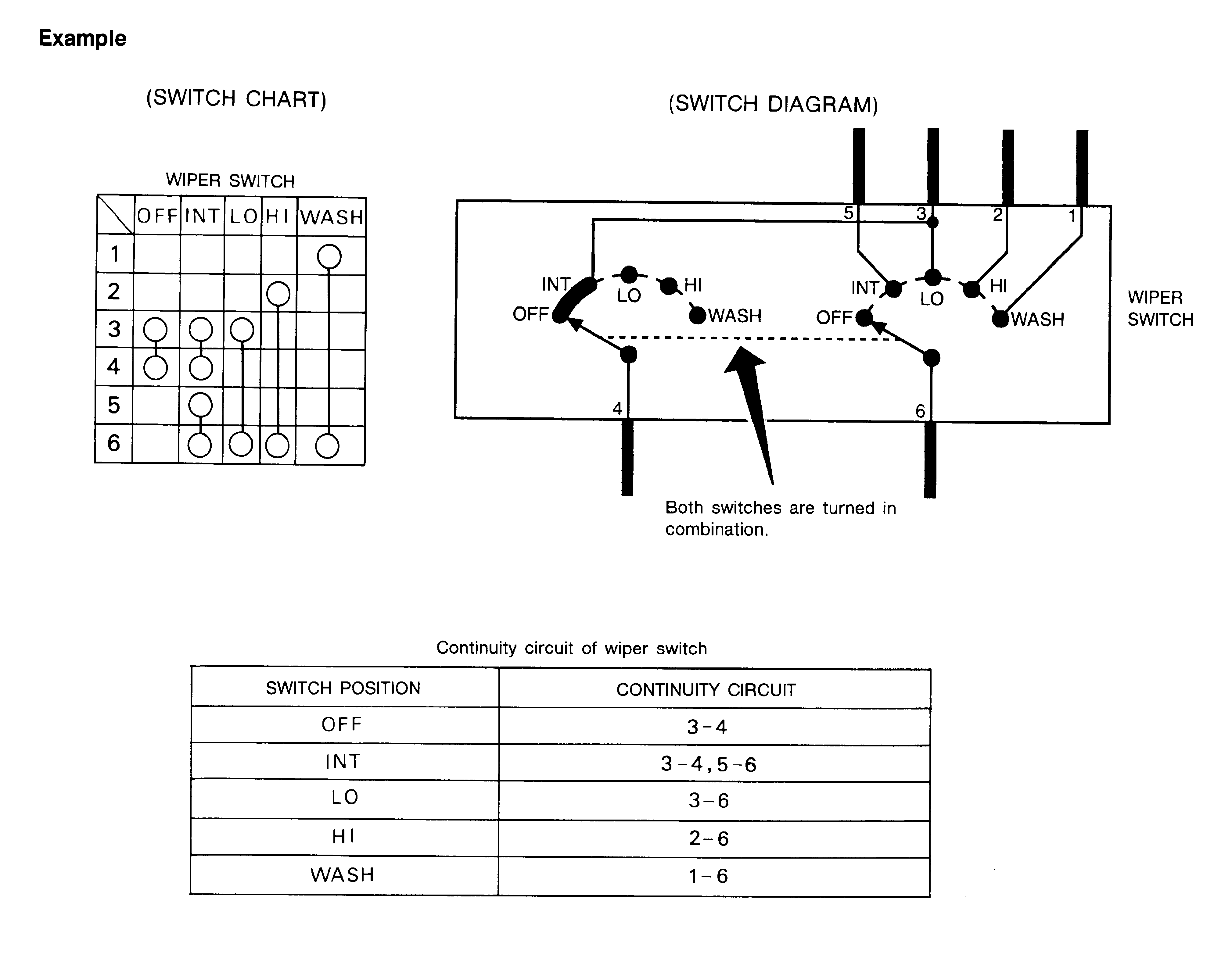

  Fig 1: Multiple Switch Circuit Diagram

  Courtesy of NISSAN MOTOR CO., U.S.A.
