Removal and Installation: Removal

  1. Remove the front door finisher.

    Refer to "EXPLODED VIEW " and "REMOVAL AND INSTALLATION ".

  2. Power window main switch (1) is removed from power window main switch finisher (2) using flat-bladed screw driver (A) etc.
    CAUTION: Never fold pawl of front door finisher.

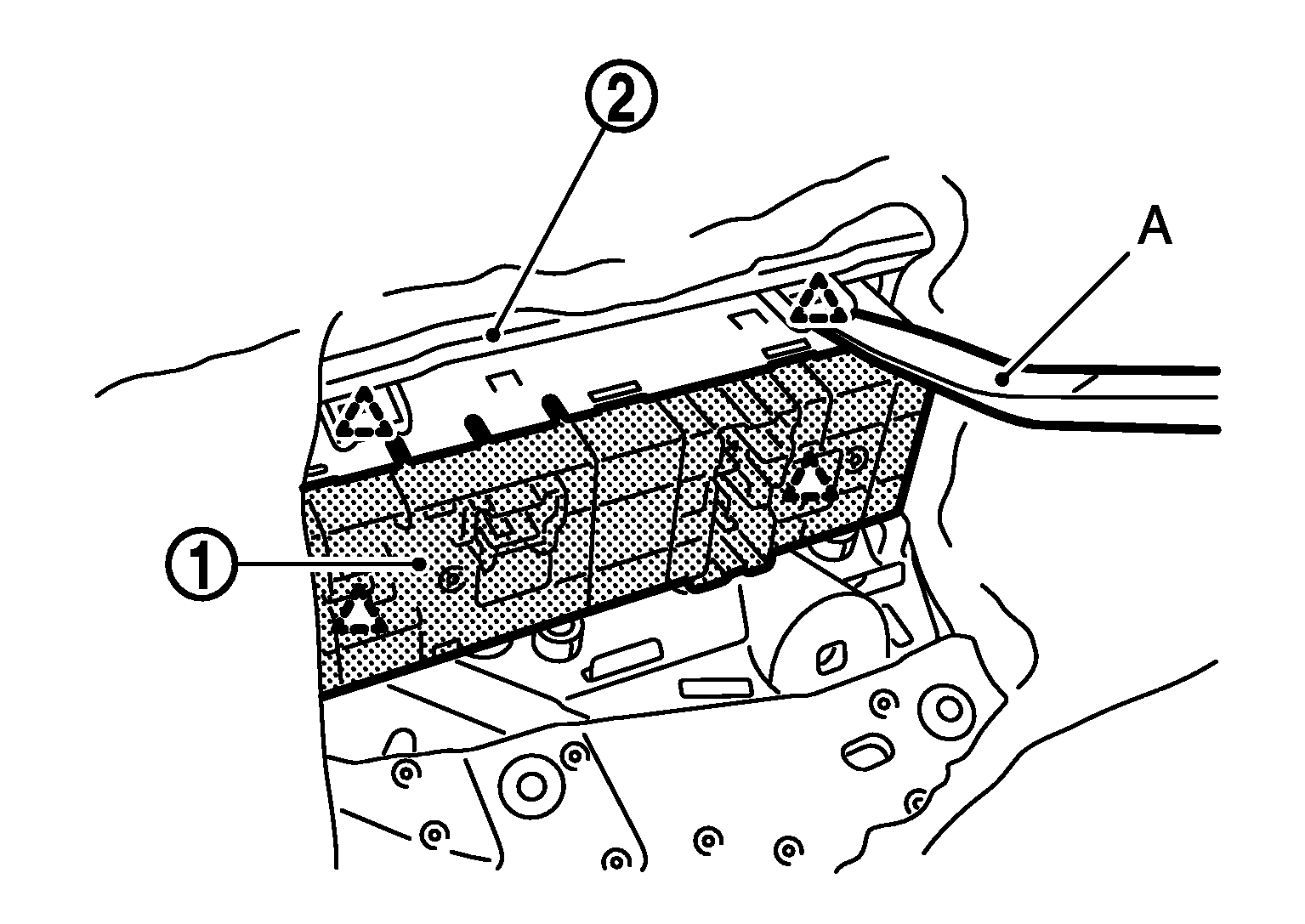

    Fig 1: Identifying Power Window Main Switch And Power Window Main Switch Finisher
    G05982286Courtesy of NISSAN MOTOR CO., U.S.A.
