Home
>>
Infiniti
>>
2009
>>
FX50
>>
Repair and Diagnosis
>>
Body & Frame
>>
Exterior/Interior Trim
>>
Interior
>>
On-Vehicle Repair
>>
Body Side Trim
>>
Exploded View
Exploded View

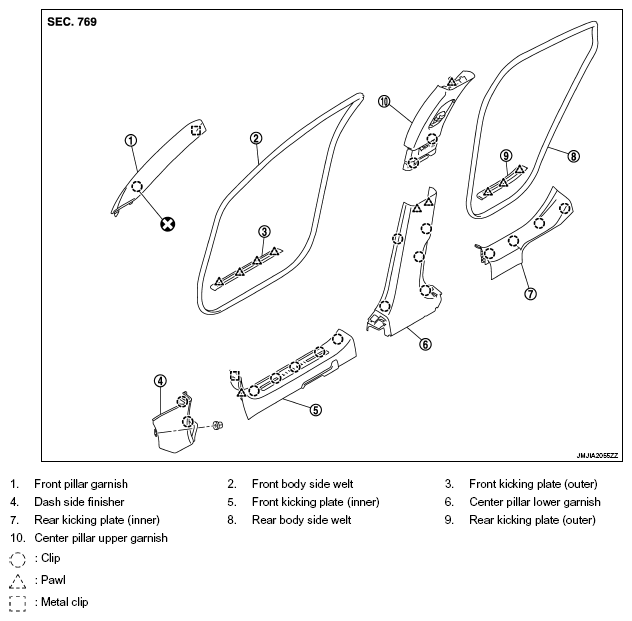

Fig 1: Exploded View Of Body Side Trim
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
