WITHOUT ELECTRIC MOTOR : Exploded View

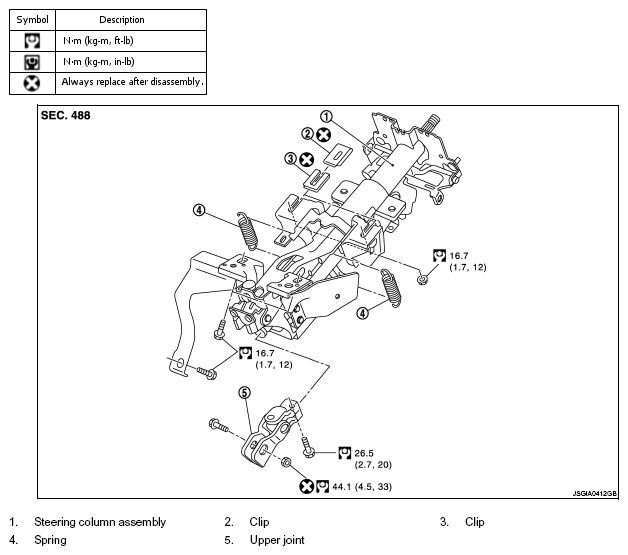

Fig 1: Exploded View Of Steering Column - Without Electric Motor With Torque Specifications
G05984439Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
