Exploded View

CAUTION: Before replacing CAN gateway, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (CAN GATEWAY) : DESCRIPTION ".

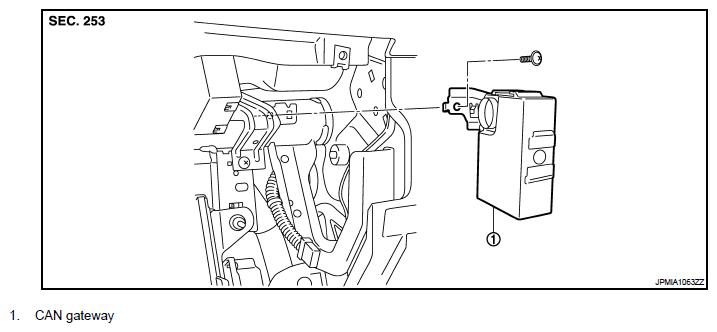

Fig 1: Identifying CAN Gateway
G05976485Courtesy of NISSAN MOTOR CO., U.S.A.
