Engine Cooling System
>>
On-Vehicle Repair
>>
Cooling Fan
>>
Exploded View
Exploded View

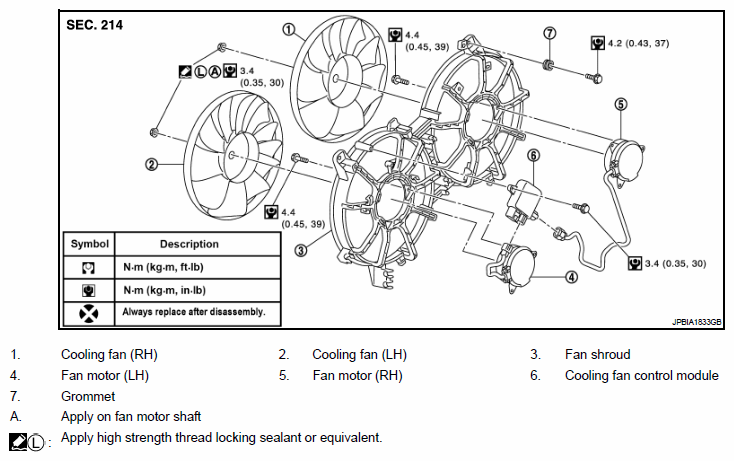

Fig 1: Exploded View Of Cooling Fan With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
Components
" for symbols not described on the above.
