Removal and Installation: Removal

  1. Disconnect the battery cable from the negative terminal.
  2. Drain ATF through drain plug.
  3. Remove exhaust mounting bracket. Refer to "EXPLODED VIEW ".

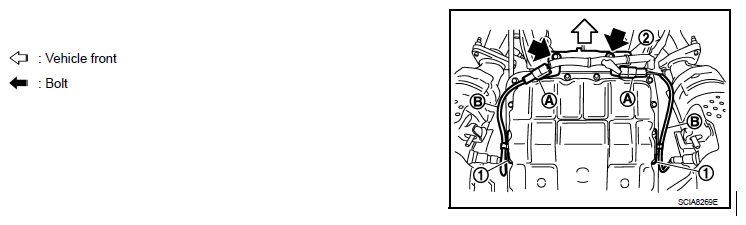

  4. Disconnect heated oxygen sensor 2 connectors (A).
    Fig 1: Locating Heated Oxygen Sensor Connectors
    G06300894Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove heated oxygen sensor 2 harness (B) from clips (1).
  6. Remove bracket (2) from transmission assembly.
  7. Disconnect A/T assembly connector.
  8. Remove snap ring (1) from A/T assembly connector (A).
    Fig 2: Removing Snap Ring From A/T Assembly Connector
    G06300895Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Push A/T assembly connector (A).
    CAUTION: Be careful not to damage connector.
    Fig 3: Pushing A/T Assembly Connector
    G06300896Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove clips (1).
  11. Remove oil pan (2) and oil pan gasket.
    Fig 4: Locating Oil Pan And Oil Pan Gasket
    G06300897Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Remove magnets (1) from oil pan.
    Fig 5: Identifying Oil Pan Magnets
    G06300898Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Disconnect A/T fluid temperature sensor 2 connector (A).
    CAUTION: Be careful not to damage connector.
  14. Disengage terminal clips (<==).
    Fig 6: Locating Terminal Clips
    G06300899Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Disconnect revolution sensor connector (A).
    CAUTION: Be careful not to damage connector.
  16. Disengage terminal clip (<==).
    Fig 7: Locating Revolution Sensor Connector
    G06300900Courtesy of NISSAN MOTOR CO., U.S.A.

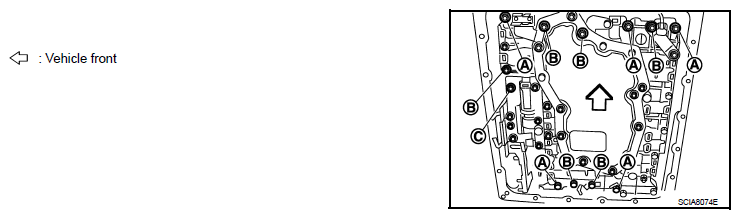

  17. Remove bolts (A), (B) and (C) from control valve with TCM.
    Fig 8: Identifying Bolts
    G06300901Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Remove control valve with TCM from transmission case.
    CAUTION: When removing, be careful with the manual valve (1) notch and manual plate (2) height. Remove it vertically.
    Fig 9: Identifying Manual Valve And Manual Plate
    G06300902Courtesy of NISSAN MOTOR CO., U.S.A.

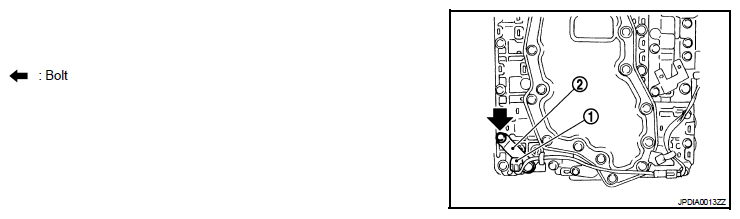

  19. Remove A/T fluid temperature sensor 2 (1) with bracket (2) from control valve with TCM.
    Fig 10: Identifying A/T Fluid Temperature Sensor 2 With Bracket
    G06300903Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Remove bracket (1) from A/T fluid temperature sensor 2 (2).
    Fig 11: Removing Bracket From A/T Fluid Temperature Sensor 2
    G06300904Courtesy of NISSAN MOTOR CO., U.S.A.

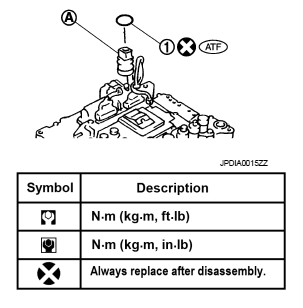

  21. Remove O-ring (1) from A/T assembly connector (A).
    Fig 12: Identifying O-Ring And A/T Assembly Connector
    G06300905Courtesy of NISSAN MOTOR CO., U.S.A.
  22. Disconnect TCM connectors (A) and (B).
    CAUTION: Be careful not to damage connectors.
    Fig 13: Identifying TCM Connectors
    G06300906Courtesy of NISSAN MOTOR CO., U.S.A.
  23. Remove A/T assembly connector (A) from control valve with TCM with flat-blade screwdriver (B).
    Fig 14: Removing A/T Assembly Connector From Control Valve With TCM
    G06300907Courtesy of NISSAN MOTOR CO., U.S.A.
  24. Disconnect TCM connector (A) and park/neutral position switch connector (B).
    CAUTION: Be careful not to damage connectors.
    Fig 15: Identifying TCM Connector And Park/Neutral Position Switch Connector
    G06300908Courtesy of NISSAN MOTOR CO., U.S.A.
