Cross-Sectional View
>>
2WD Models
2WD Models

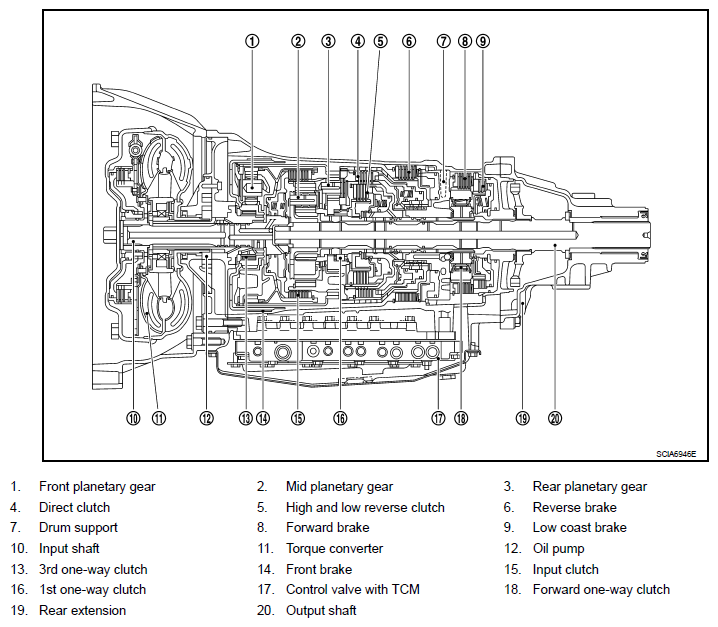

Fig 1: Cross-Sectional View Of Shift Mechanism (2WD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
