Infiniti
>>
2009
>>
EX35 Base, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Function Diagnosis
>>
Shift Lock System
>>
Component Parts Location
Component Parts Location

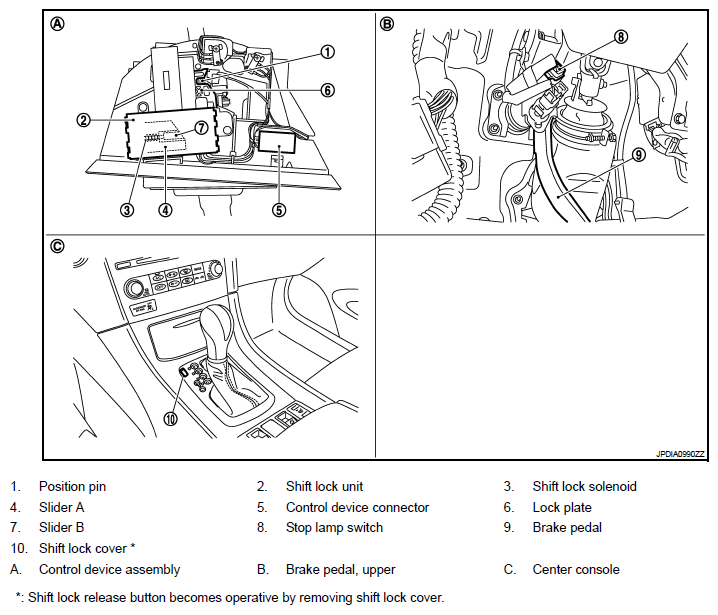

Fig 1: Identifying Shift Lock System Component Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
