WITHOUT ELECTRIC MOTOR : Exploded View

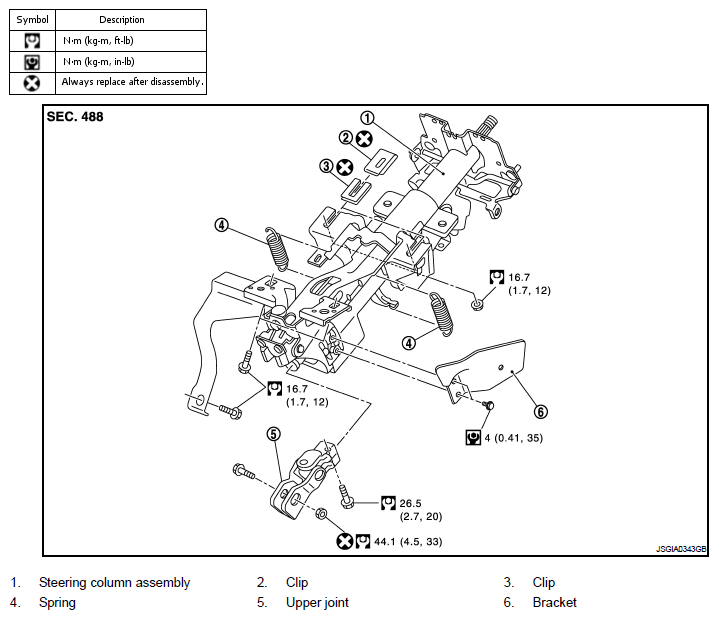

Fig 1: Steering Column Assembly, Upper Joint, Clip And Bracket With Torque Specifications
G06302617Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
