Maintenance Service Reminder Reset - Procedure 02

Pushing MAINT button will change the maintenance menu as follows: ENGINE OIL ! TIRE ROTATION ! TIRE PRESSURE (if equipped).

1. To reset the driving distance, push the MAINT button or TRIP RESET button for more than 1.5 seconds.
2. To set the distance, push the joystick to left or right.
3. To automatically display the Maintenance menu (ENGINE OIL or TIRE ROTATION) when the vehicle is driven the set distance turn ON the service alert key.
4. When the vehicle is driven the set distance MAINTENANCE screen will be automatically displayed and the Maintenance menu (ENGINE OIL and TIRE ROTATION) will blink.
5. To return to the previous display after Maintenance Notice message is displayed, push the PREV button.

The MAINTENANCE NOTICE screen displays each time the key is turned ON until one of the following conditions are met:

• MAINT button or TRIP RESET button is pushed.
• SERVICE ALERT KEY is set OFF.
• The maintenance interval is set again.

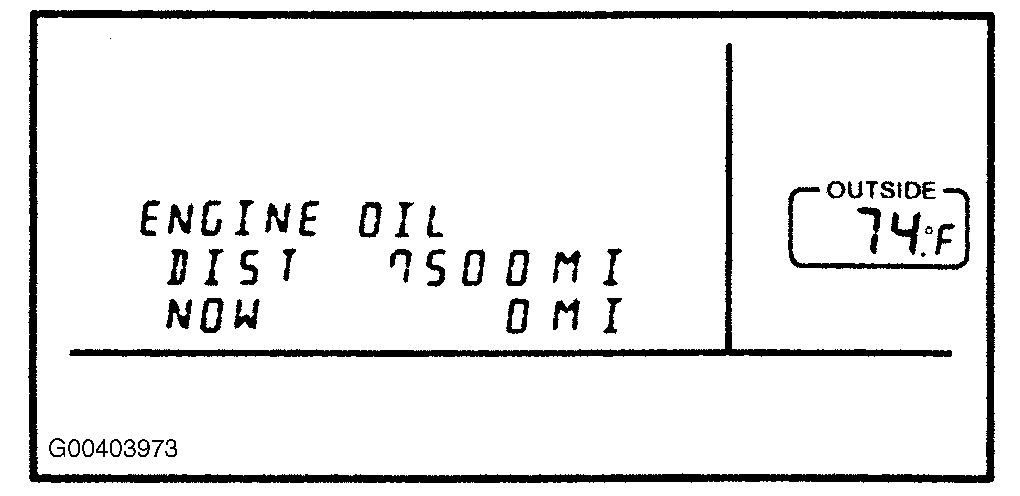

Fig 1: Displaying Maintenance Information Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
