Removal and Installation: Removal

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console finisher. Refer to REMOVAL AND INSTALLATION .
  2. Disconnect the power socket connector (A).

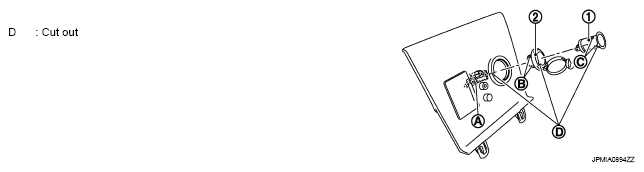

    3. Fig 1: Identifying Power Socket Connector, Inner Socket & Ring Pawl
    G05730764Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Pull out the inner socket (1) by pushing the ring pawl (B) from the inner socket hole (square) (C).
  4. Remove the ring (2) from the console finisher while pressing pawls.
