Disassembly and Assembly: Assembly
WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.
- Install bleeder valve and cap.
- Apply rubber grease to piston seal (1), and install them to cylinder body.
CAUTION: Never reuse piston seal.
- Apply rubber grease to piston boot (1). Cover the piston (2) end with the piston boot, and then install cylinder side lip on the piston boot securely into the groove on cylinder body.CAUTION: Never reuse piston boot.
- Apply brake fluid to piston (1). Push piston into cylinder body by hand and push piston boot (2) piston side lip into the piston groove.CAUTION: Press the piston evenly and vary the pressing point to prevent cylinder inner wall from being rubbed.

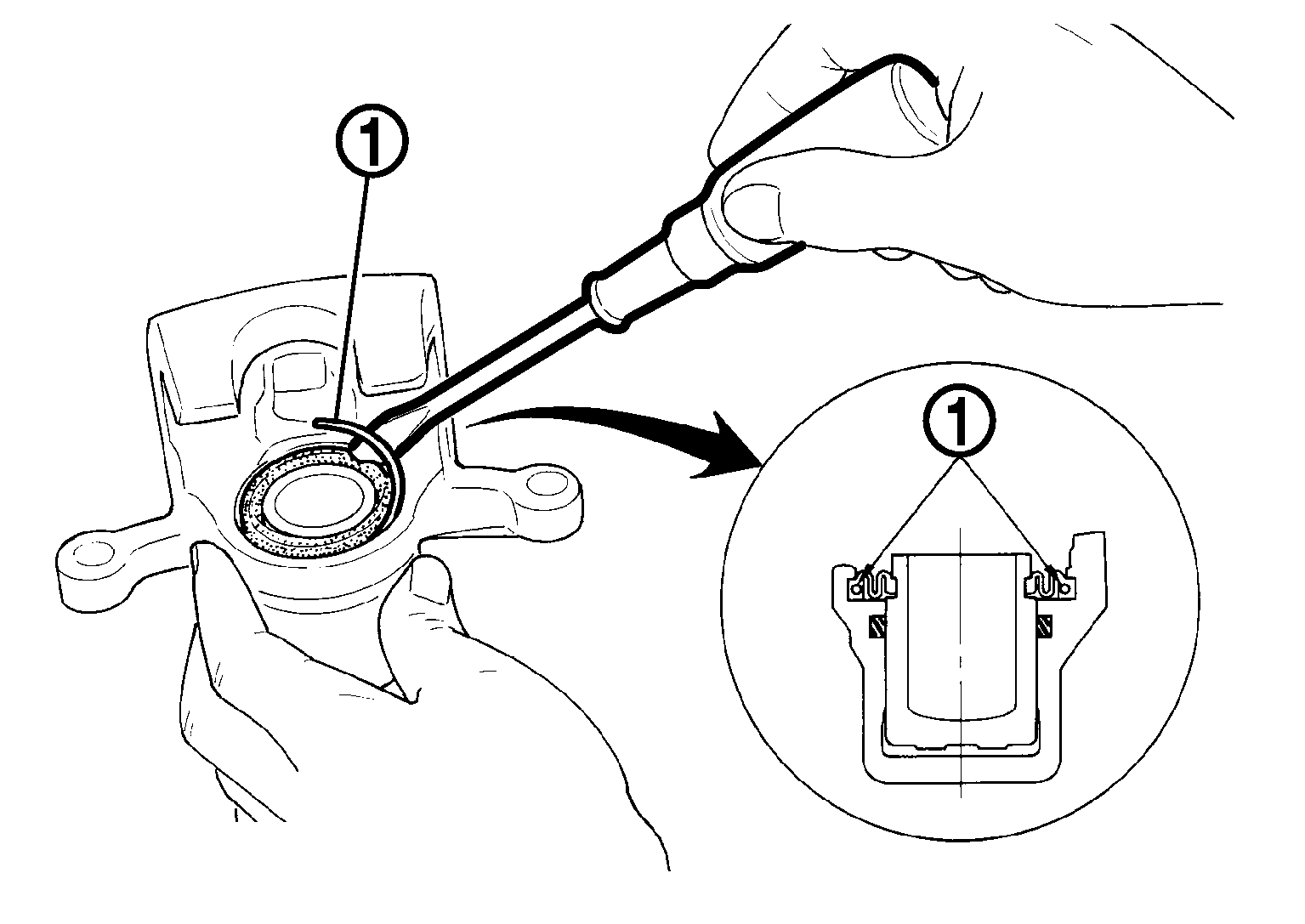

- Secure piston boot with retaining ring (1).CAUTION:
- Make sure that boot is securely engaged in the groove on cylinder body.
- Never reuse retainer ring.
- Apply rubber grease to bushing, and install bushing to sliding pin bolt.
- Apply rubber grease to sliding pin boots, and install sliding pin boot to torque member.
- Apply rubber grease to sliding pin bolts, and install the cylinder body to the torque member and tighten the sliding pin bolt to the specified torque.
- Install radius rod. Refer to EXPLODED VIEW .
