Disassembly and Assembly: Disassembly
WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Never disassemble the cylinder body.
- Remove the reservoir tank only when necessary.
- Fix the master cylinder assembly to a vise.CAUTION: Always set copper plates or cloth between them when fixing the cylinder body to a vise. Never overtighten the vise.

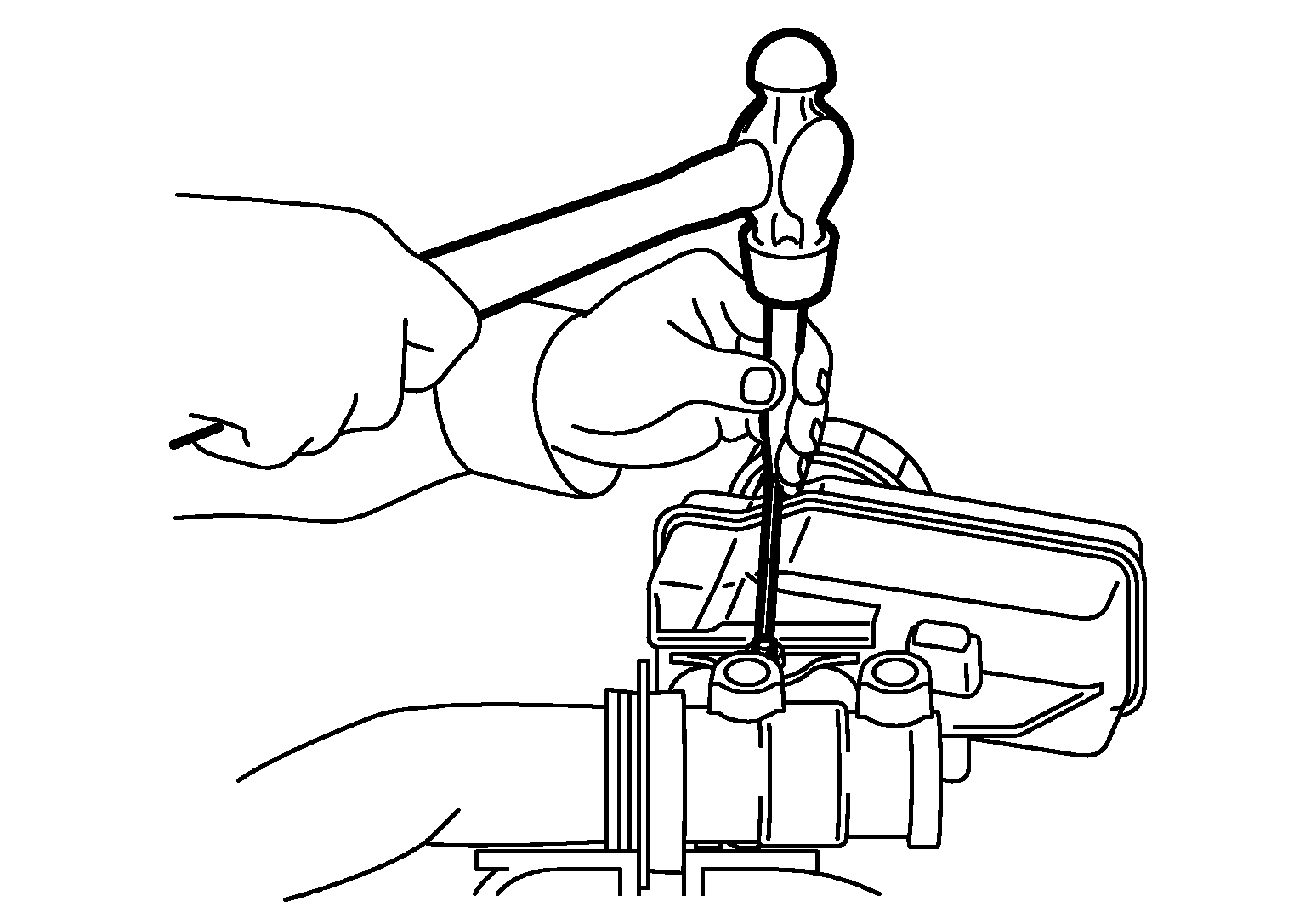

- Remove the reservoir tank mounting pin with a pin punch.
- Remove the reservoir tank and grommet from the cylinder body.
CAUTION:
Never drop the removed parts. The parts must not be reused if they are dropped.
