WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

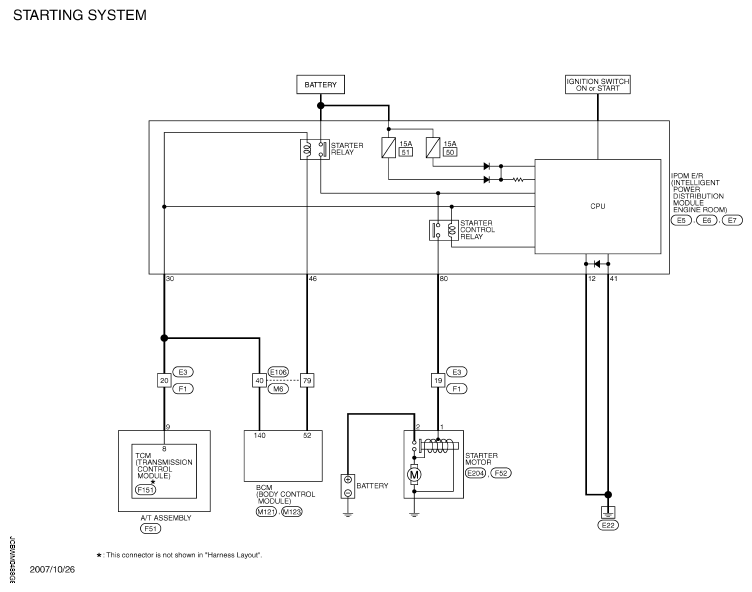

Fig 1: Identifying Wiring Diagram - Starting System
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Starting System Connector Terminal (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying Starting System Connector Terminal (2 Of 2)
