When New Cylinder Block Is Used

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

Check the cylinder bore grade ("1", "2" or "3") on rear side of cylinder block, and select piston of the same grade.

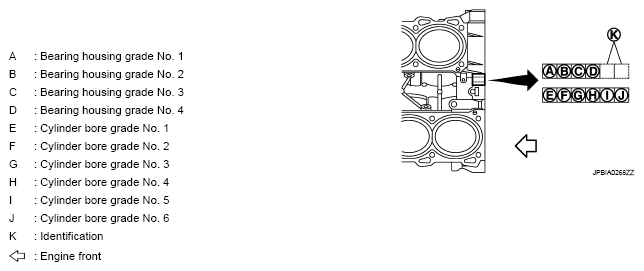

Fig 1: Identifying Cylinder Bore Grade Number
G05726184Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Piston is available with piston pin as a set for the service part. (Only "0" grade piston pin is available.)
