Exploded View
Exploded View

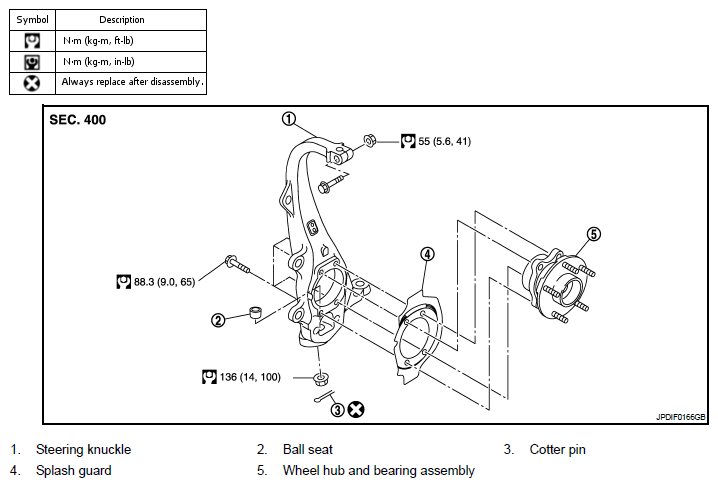

Fig 1: Front Wheel Hub And Knuckle With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
Components
" for symbols in the figure.
