Infiniti
>>
2009
>>
EX35 Base, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
On-Vehicle Repair
>>
Rear Door Glass
>>
Exploded View
Exploded View

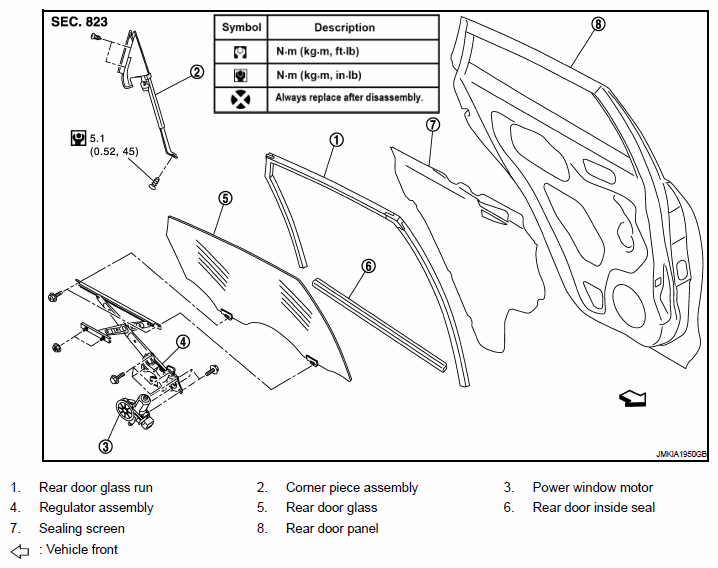

Fig 1: Exploded View Of Rear Door Glass
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
