Sunshade
>>
Exploded View
Exploded View

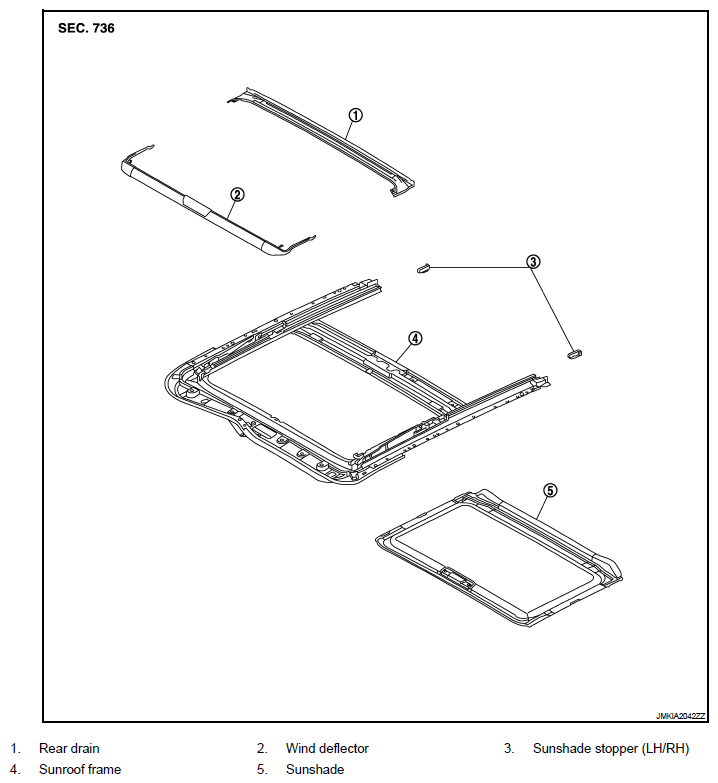

Fig 1: Identifying Sunshade, Rear Drain, Wind Deflector And Sunshade Stopper
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
