LEMON Manuals
: Even more car manuals for everyone
Home
>>
Infiniti
>>
2009
>>
EX35 Base, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Sun Roof/T-Top/Convertible Top
>>
On-Vehicle Repair
>>
Sunroof Motor Assembly
>>
Exploded View
Exploded View

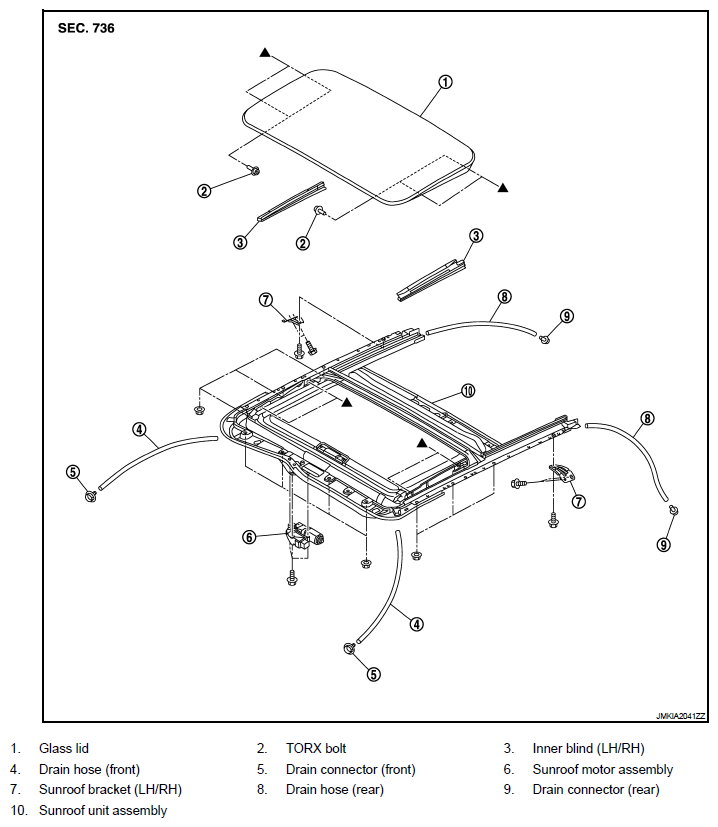

Fig 1: Identifying Sunroof Motor Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
