Exploded View
Exploded View

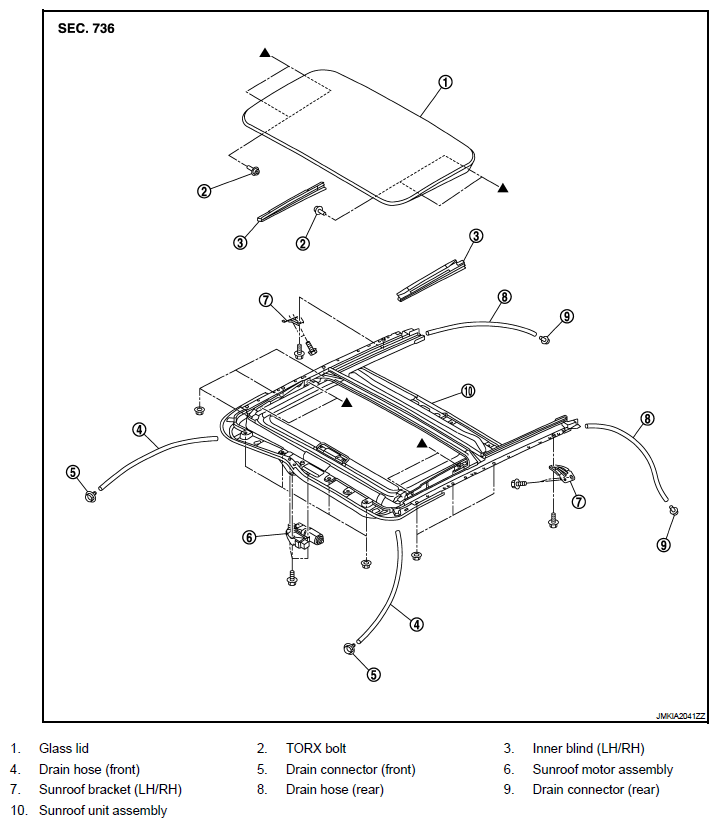

Fig 1: Identifying Glass Lid Components
Courtesy of NISSAN MOTOR CO., U.S.A.
