Wiring Diagram - IPDM E/R -
Wiring Diagram - IPDM E/R -

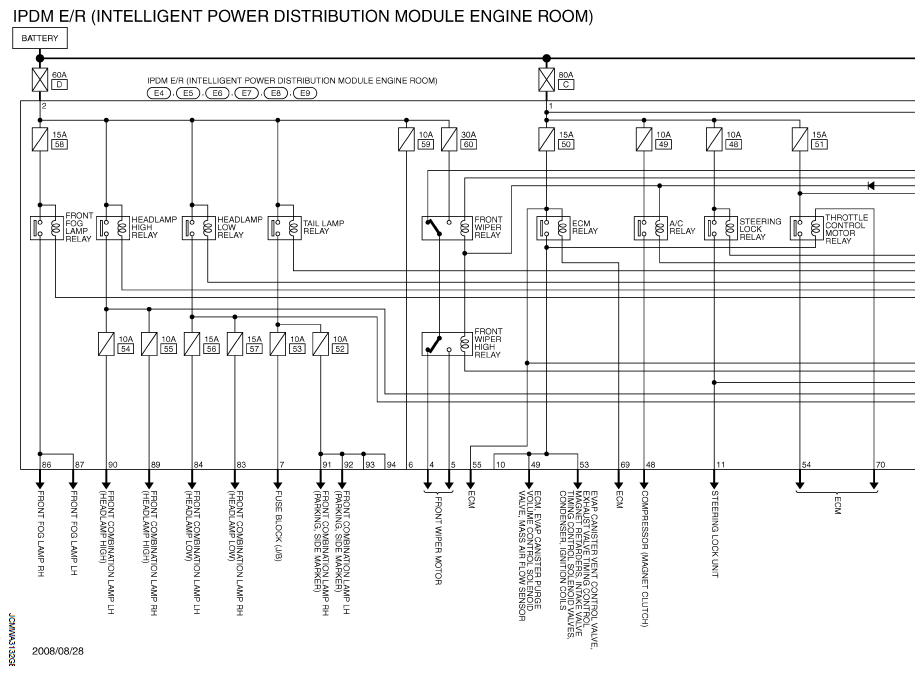

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

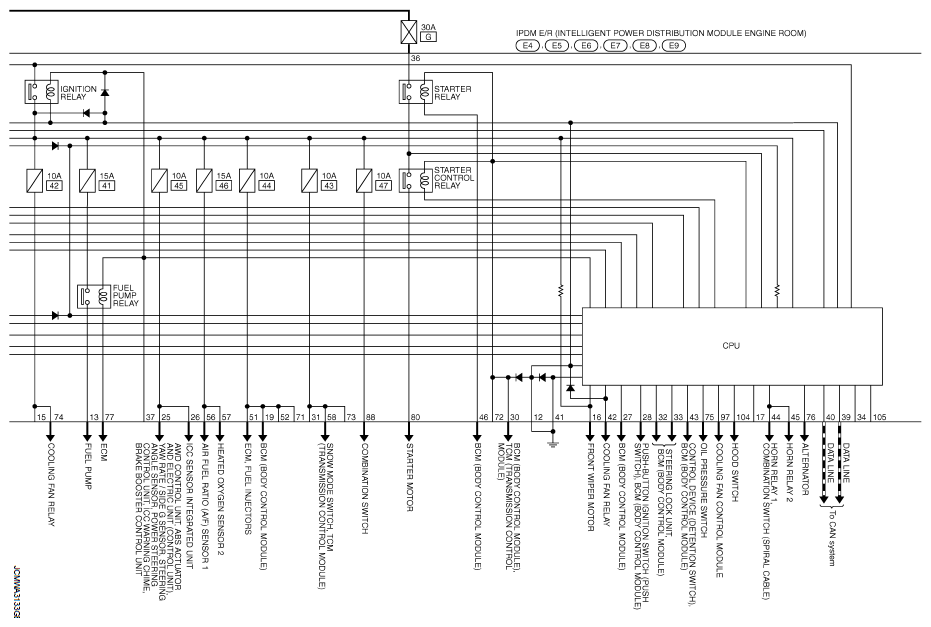

Fig 2: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

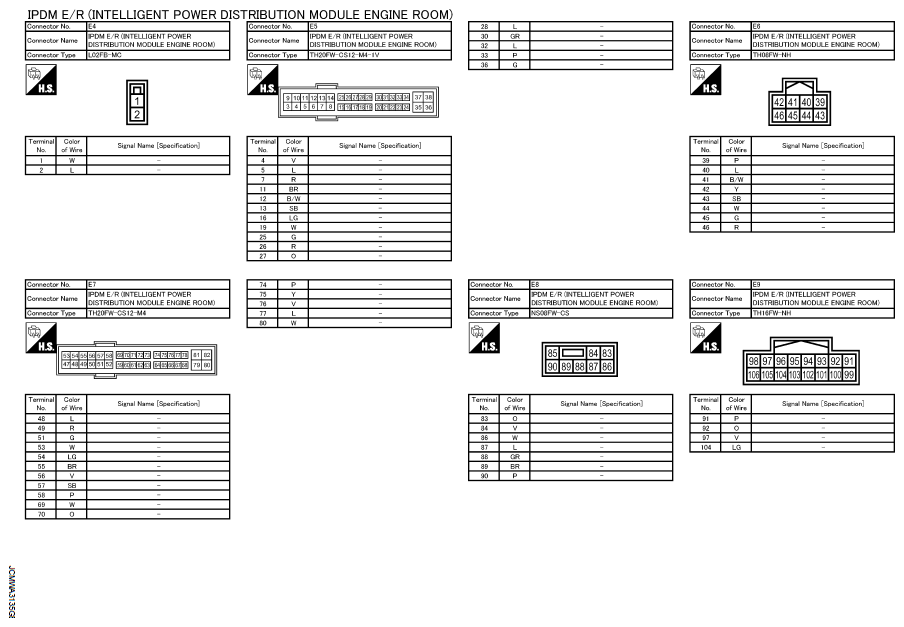

Fig 4: Identifying IPDM E/R (Intelligent Power Distribution Module Engine Room) Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
