Engine Control System - Component Testing
>>
On-Vehicle Repair
>>
EVAP Canister
>>
Removal and Installation
>>
EVAP Canister
EVAP Canister
Tighten EVAP canister as shown in the figure.

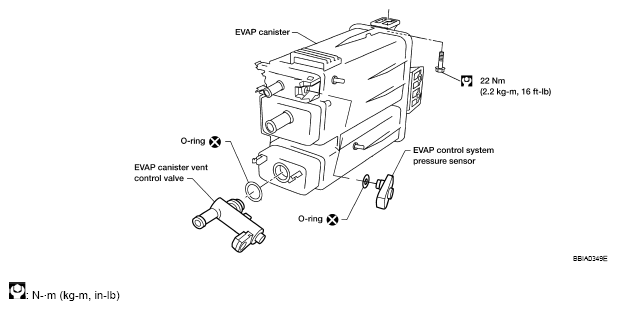

Fig 1: Identifying EVAP Canister Remove/Install Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
