Front Suspension Assembly: Component

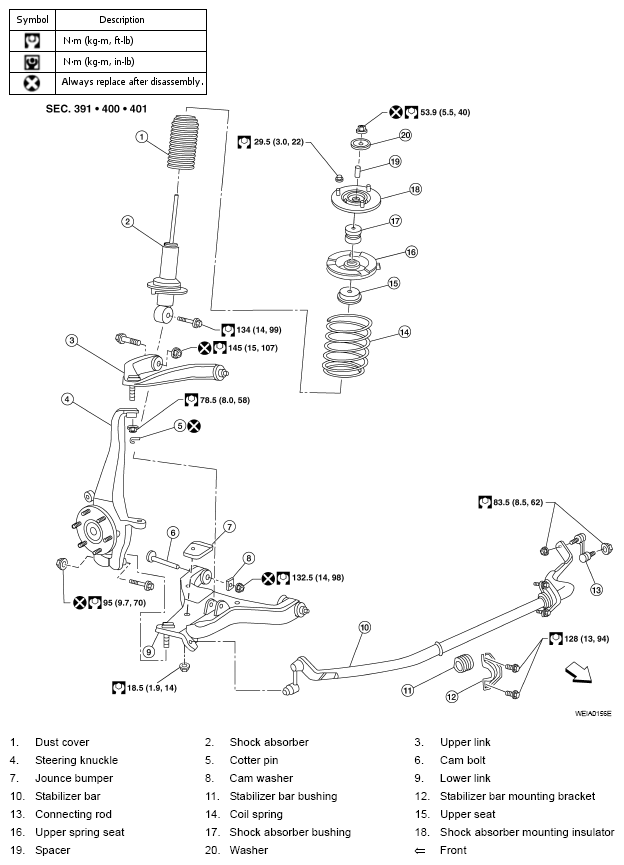

Fig 1: Exploded View Of Front Suspension Assembly Component With Torque Specifications

G05741032

Courtesy of NISSAN MOTOR CO., U.S.A.
