Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns For "Misfire" < Exhaust Quality Deterioration >, "Fuel Injection System"

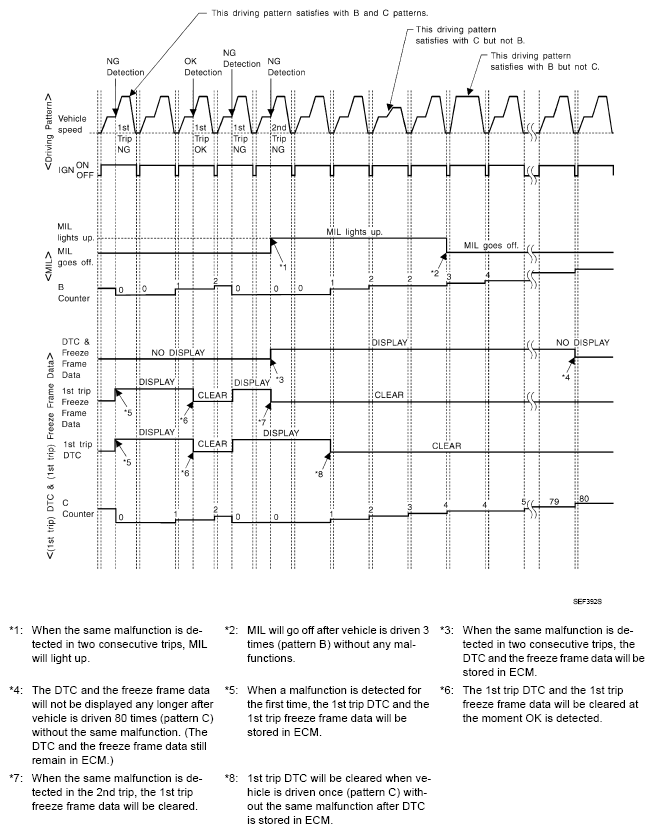

Fig 1: Driving Patterns For Fuel Injection System
G05739306Courtesy of NISSAN MOTOR CO., U.S.A.
