Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns Except For "Misfire < Exhaust Quality Deterioration >", "Fuel Injection System"

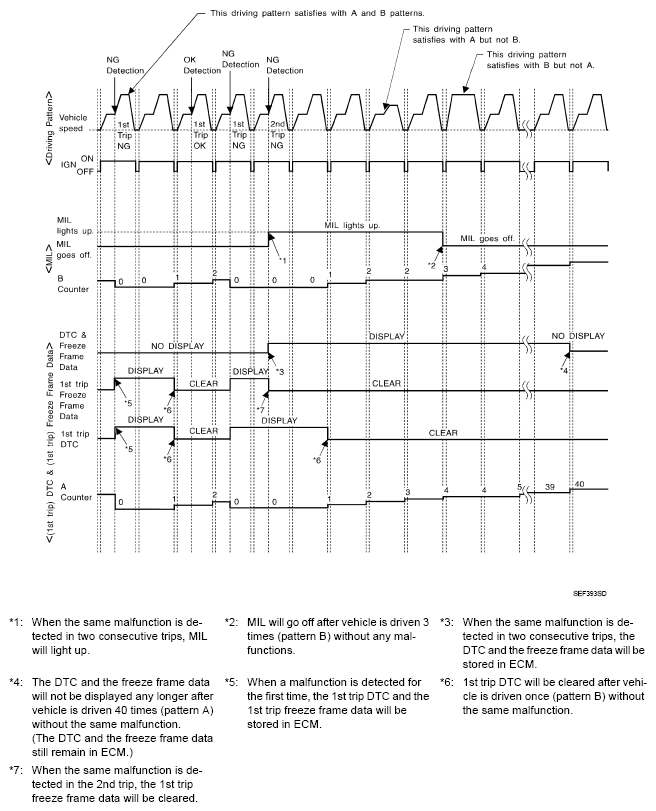

Fig 1: Driving Patterns For Fuel Injection System
G05739307Courtesy of NISSAN MOTOR CO., U.S.A.
