Evaporative Emission Line Drawing

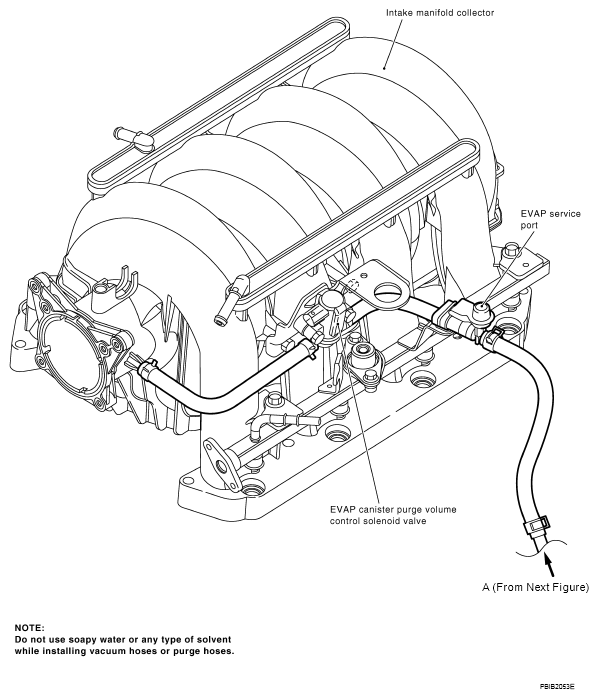

Fig 1: Identifying Evaporative Emission Components (1 Of 2)
G05739293Courtesy of NISSAN MOTOR CO., U.S.A.

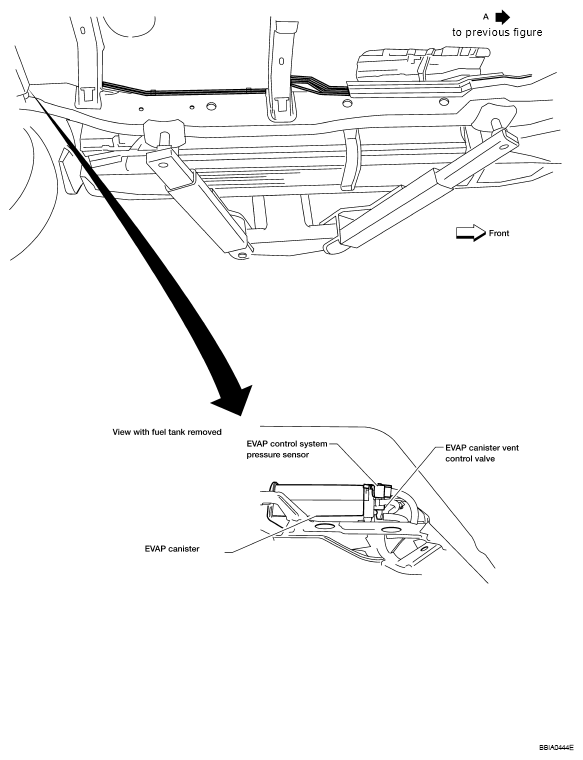

Fig 2: Identifying Evaporative Emission Components (2 Of 2)
G05739294Courtesy of NISSAN MOTOR CO., U.S.A.
