Vehicle Security (Theft Warning) System: Schematic

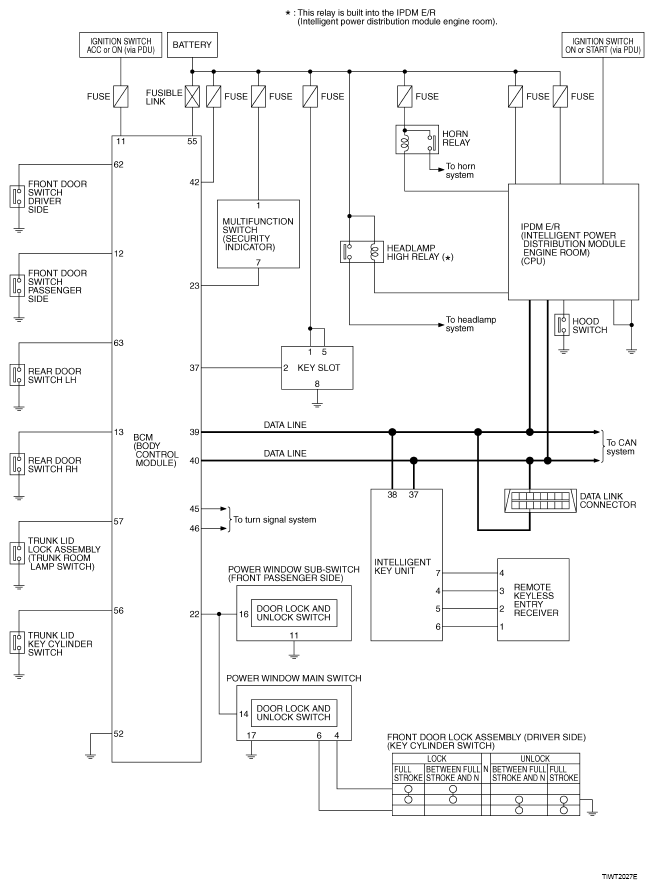

Fig 1: Vehicle Security (Theft Warning) System - Schematic Diagram
G05212424Courtesy of NISSAN MOTOR CO., U.S.A.
