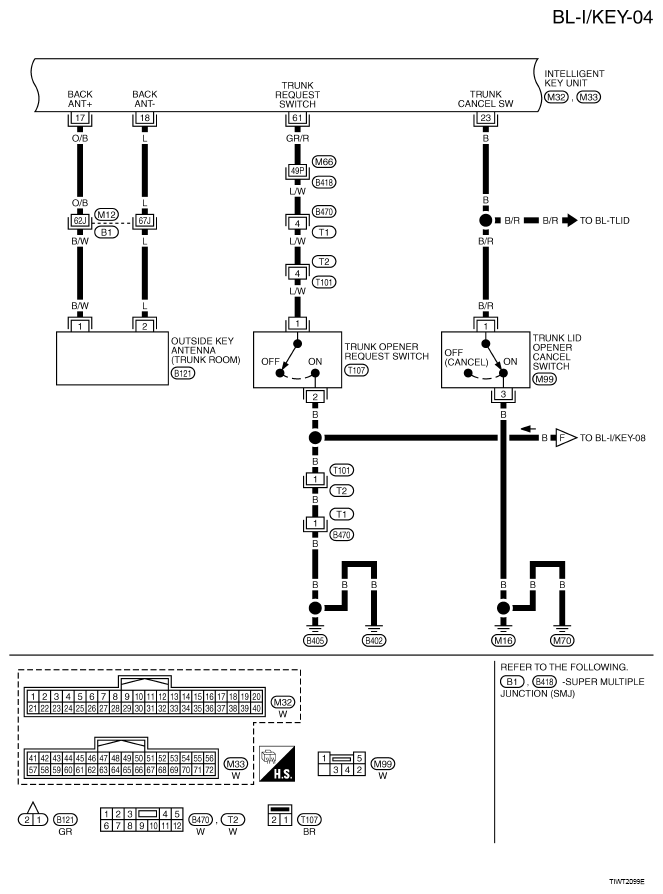

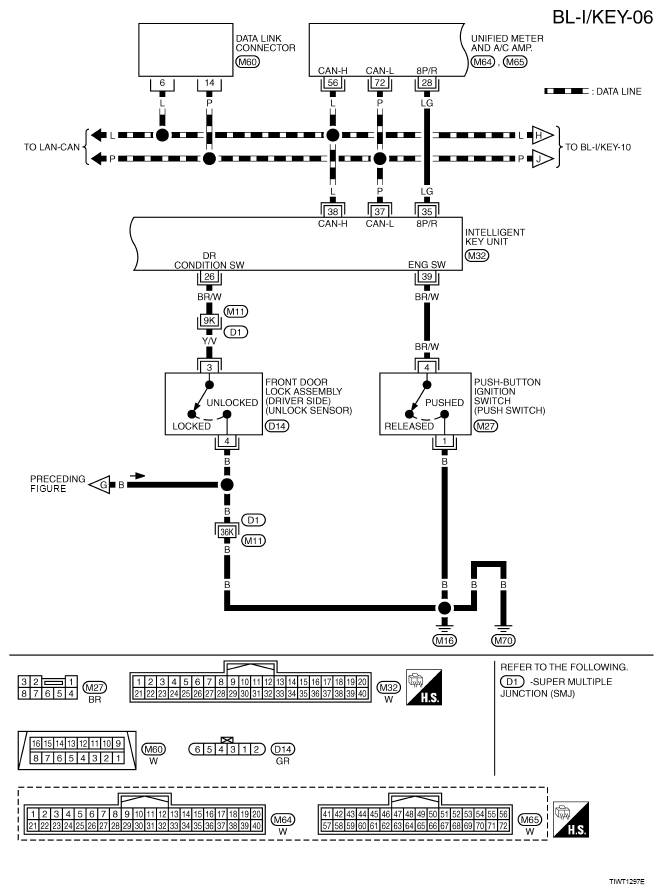

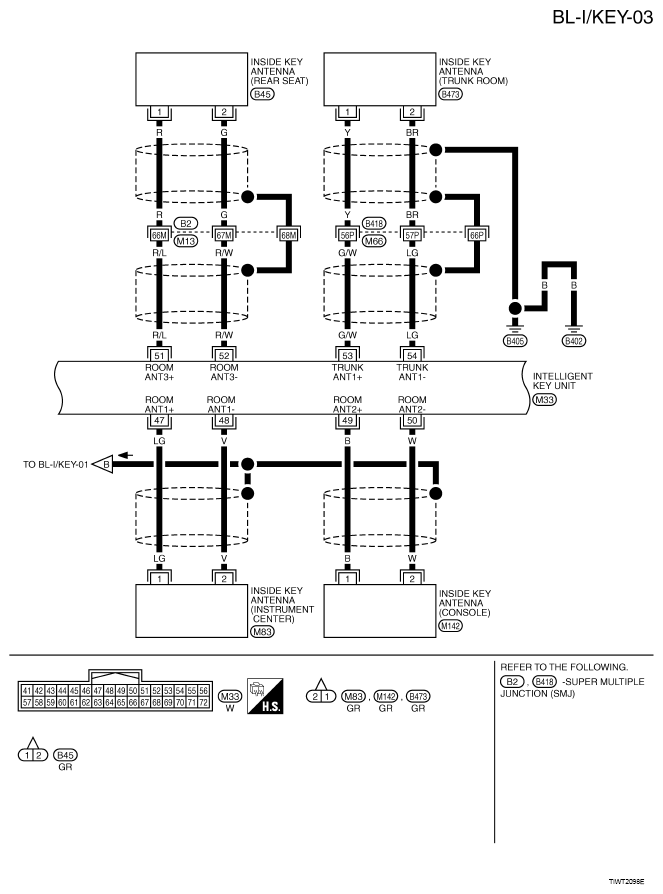

Wiring Diagram - I/KEY-
For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
.

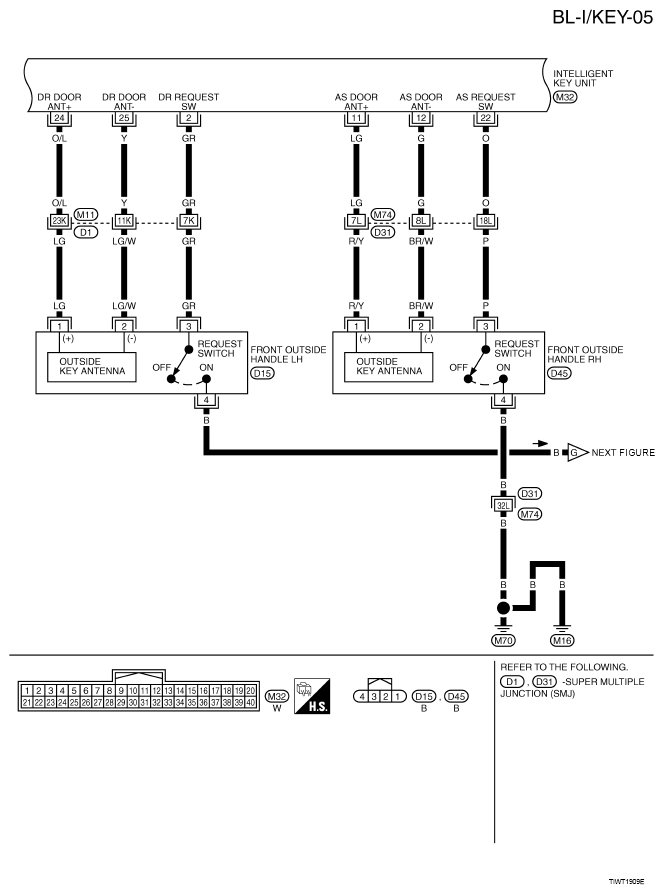

Courtesy of NISSAN MOTOR CO., U.S.A.

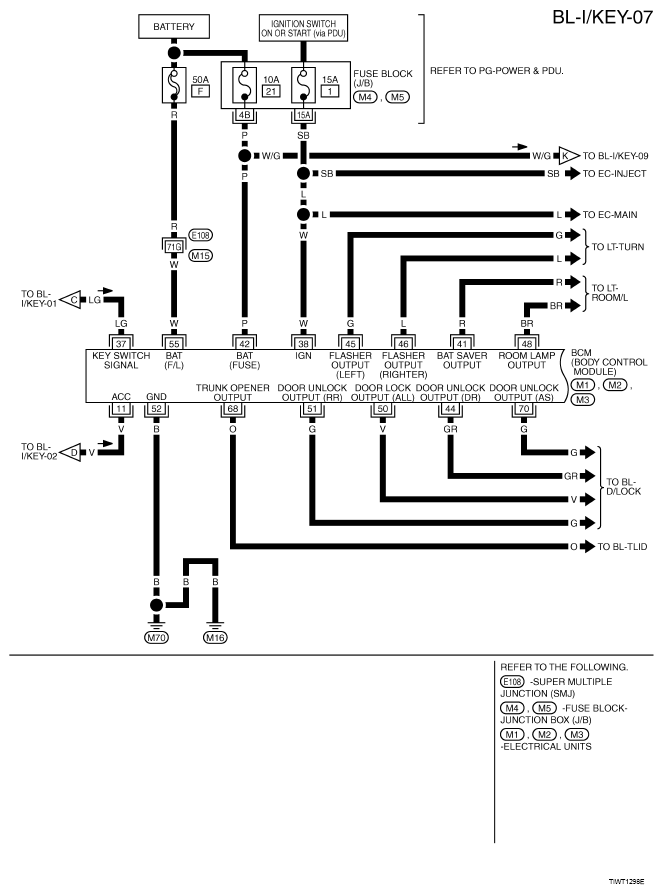

Courtesy of NISSAN MOTOR CO., U.S.A.

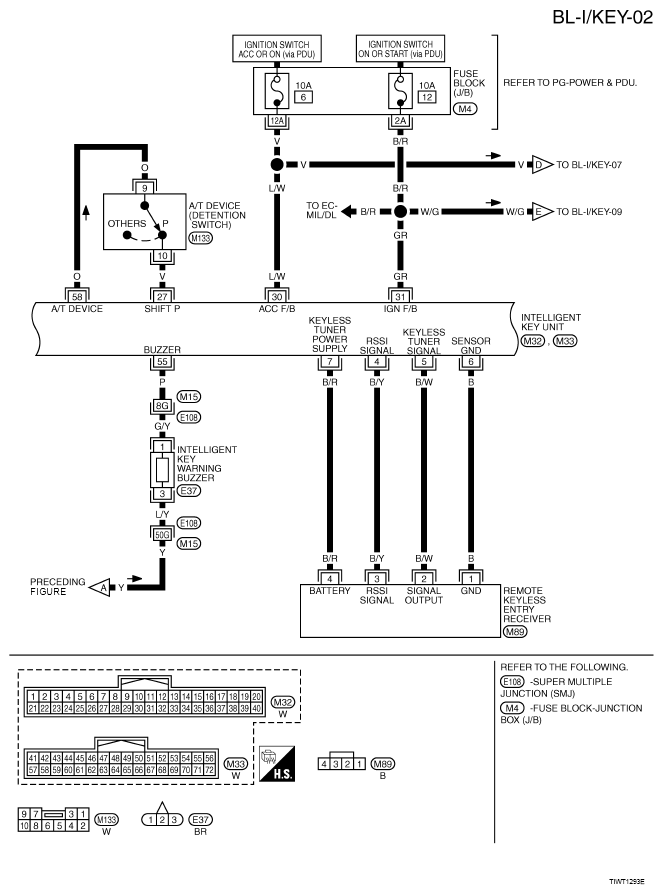

Courtesy of NISSAN MOTOR CO., U.S.A.

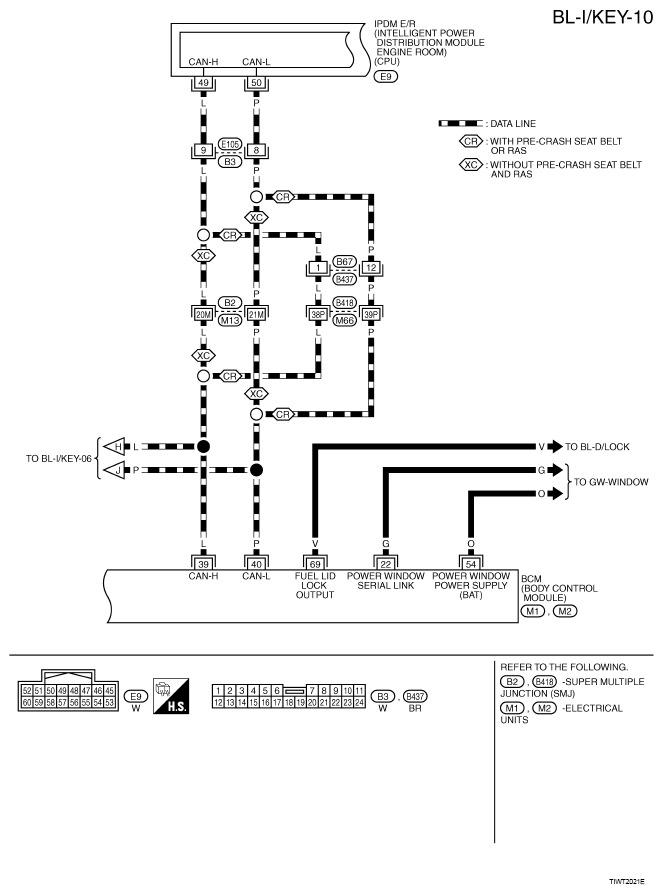

Courtesy of NISSAN MOTOR CO., U.S.A.

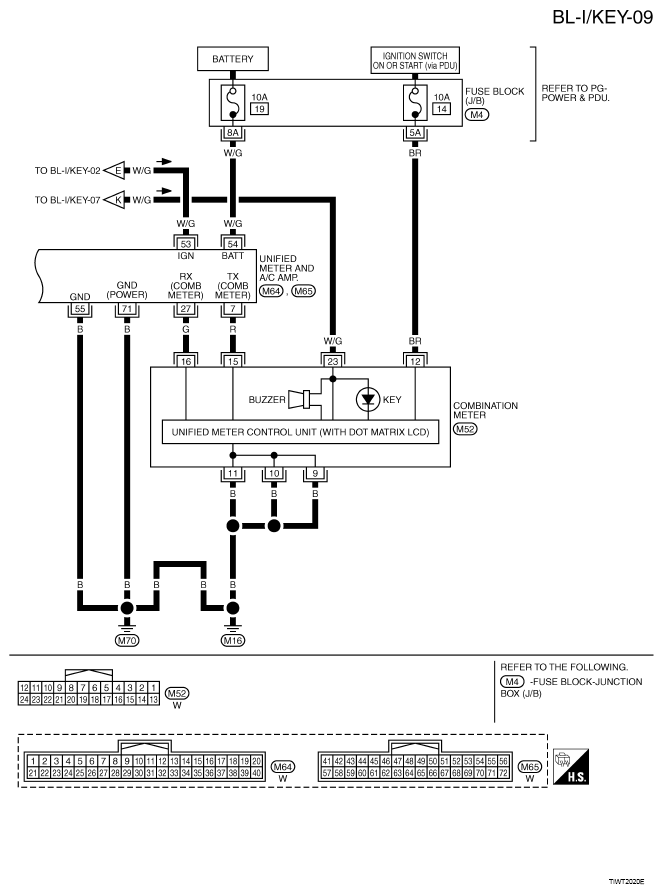

Courtesy of NISSAN MOTOR CO., U.S.A.

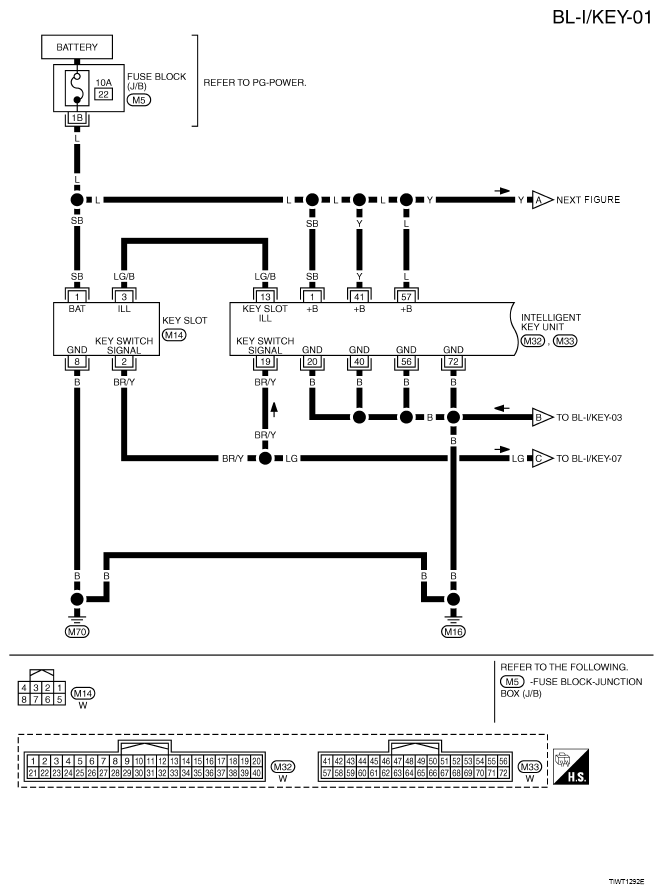

Courtesy of NISSAN MOTOR CO., U.S.A.

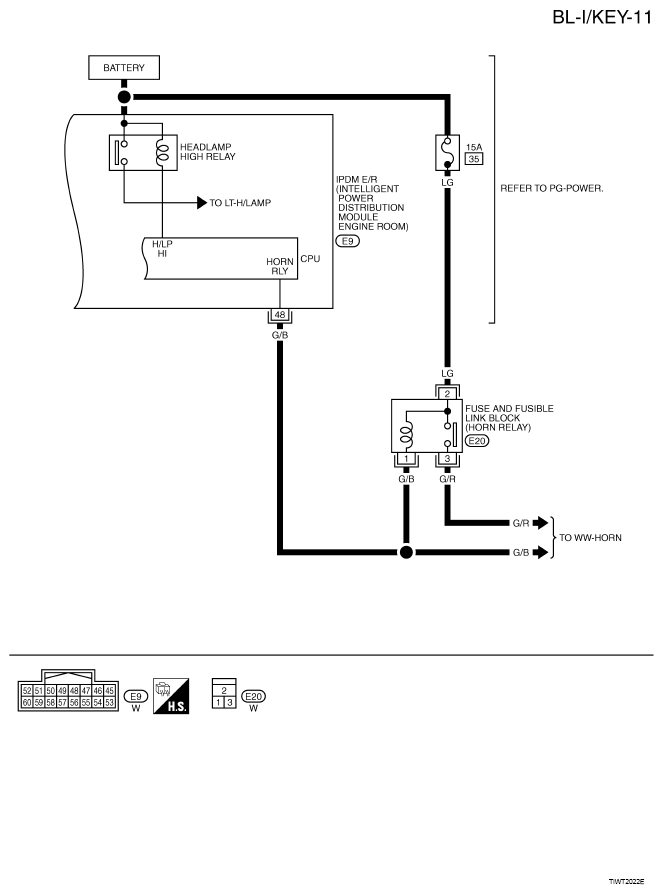

Courtesy of NISSAN MOTOR CO., U.S.A.

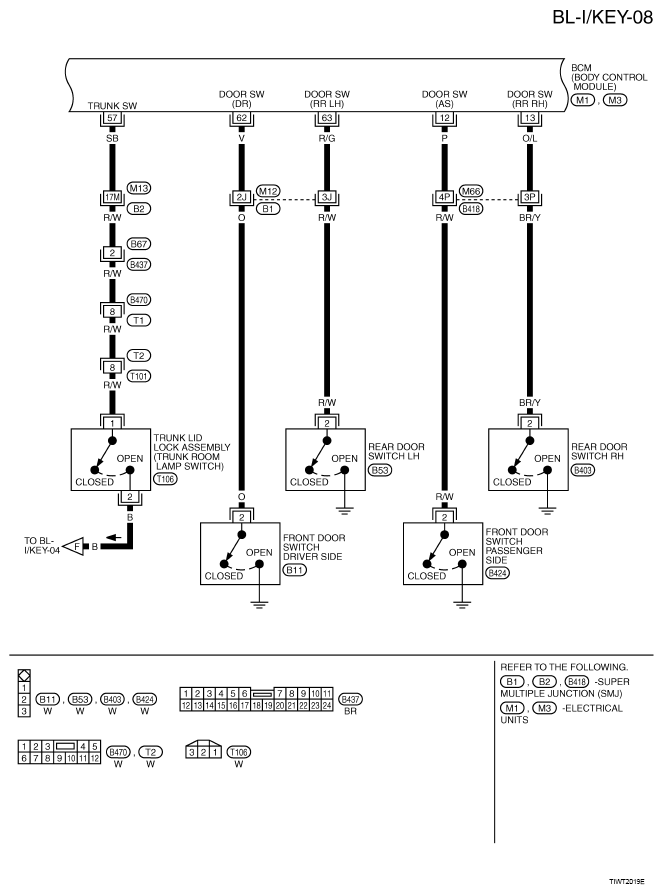

Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
