Cross-Sectional View (VQ35DE Models for 2WD)

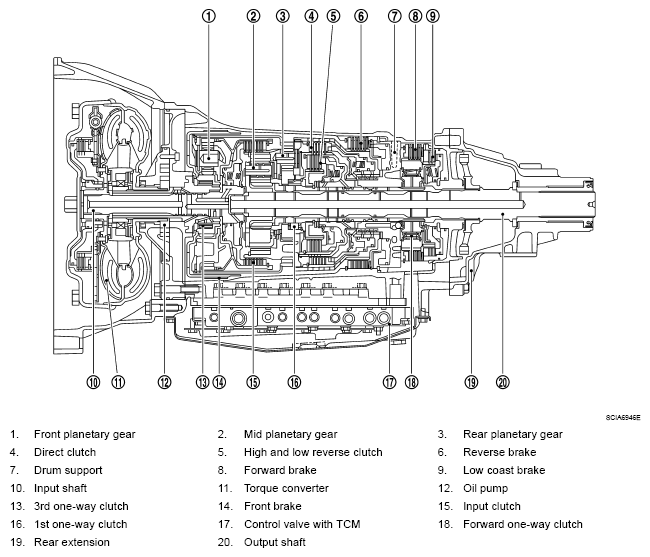

Fig 1: Identifying A/T Control System - Cross-Sectional View (VQ35DE Models For 2WD)

G05213166

Courtesy of NISSAN MOTOR CO., U.S.A.
