Home >> Infiniti >> 2008 >> M45 Base >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Rear Suspension >> Rear Suspension Assembly >> Components

Rear Suspension Assembly: Components

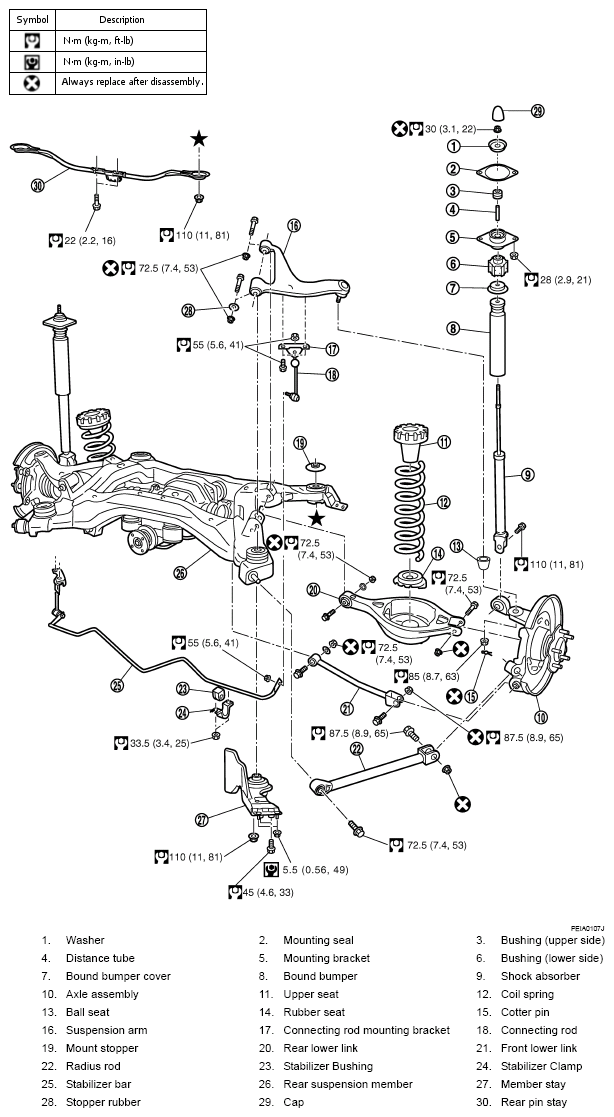

Fig 1: Exploded View Of Rear Suspension Assembly Components With Torque Specifications

G05211686

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS .
