Tail Gate Protector: Removal

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TAIL GATE PROTECTOR
    1. Apply protective tape to the outer circumference of the tail gate protector.

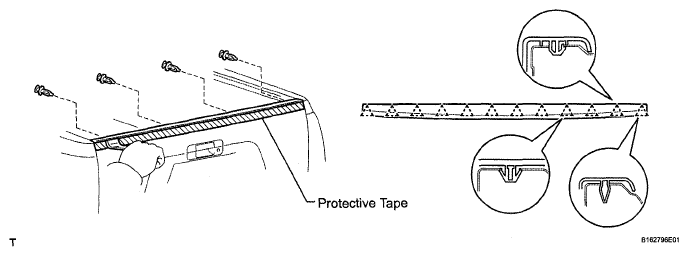

      2. Fig 1: Applying Protective Tape To Outer Circumference Of Tail Gate Protector
      G05163042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 clips.
    3. Using a moulding remover, detach the 12 claws and remove the tail gate protector.
