Side Step: Disassembly

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE STEP PLATE COVER LH
1. for Double Cab:
  Remove the step plate cover.
  1. Detach the 19 clips and remove the step plate cover.

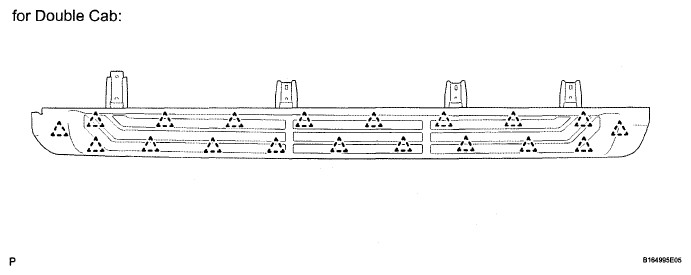

    Fig 1: Identifying Step Plate Cover Clips
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for CrewMax:
  Remove the step plate cover.
  1. Detach the 23 clips and remove the step plate cover.

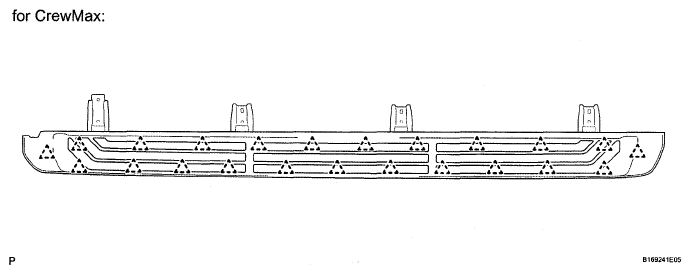

    Fig 2: Identifying Step Plate Cover Clips
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEP COVER PROTECTOR LH
REMOVE STEP ARM SPACER LH
REMOVE SIDE STEP BRACKET LH
1. Remove the 2 bolts and side step bracket.

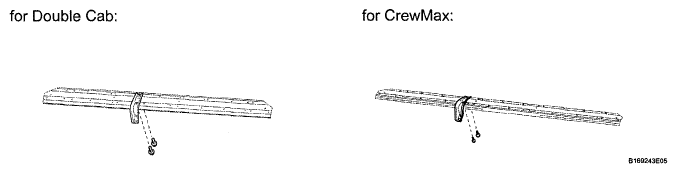

  Fig 3: Identifying Side Step Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 SIDE STEP BRACKET LH
1. Remove the 2 bolts and side step bracket.

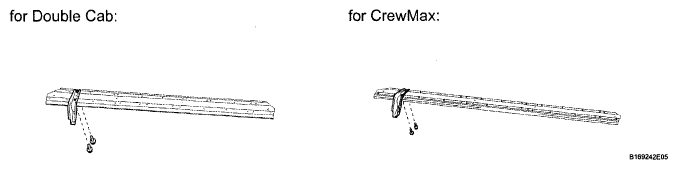

  Fig 4: Identifying Side Step Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 3 SIDE STEP BRACKET LH
1. Remove the 4 bolts and 2 side step brackets.

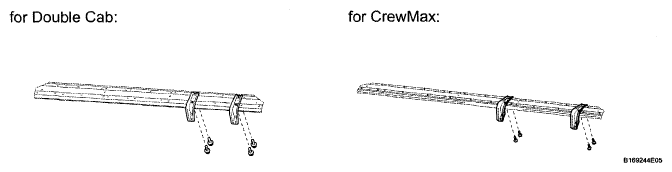

  Fig 5: Identifying Side Step Brackets Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
