Roof Drip Side Finish Moulding: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

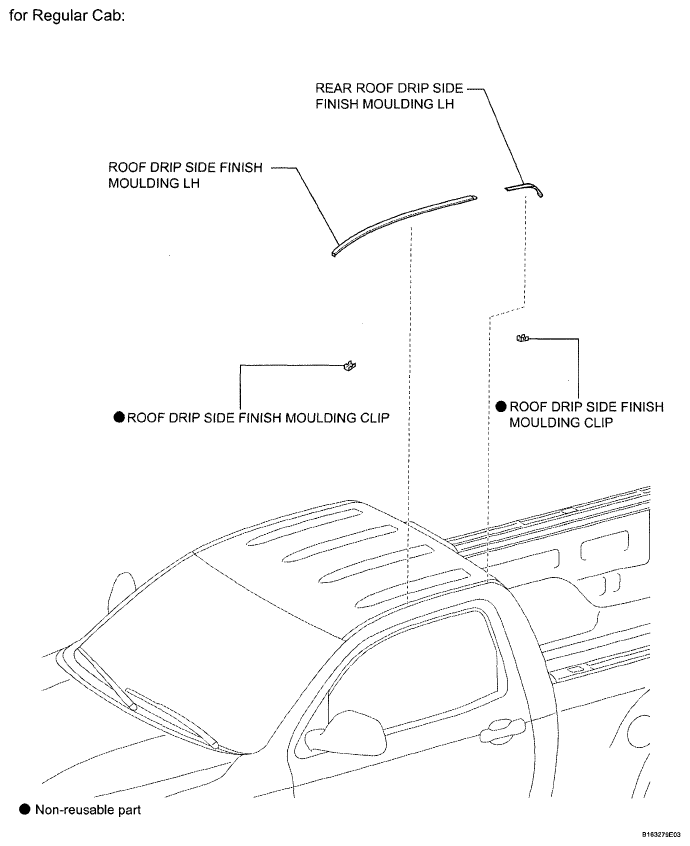

Fig 1: Identifying Roof Drip Side Finish Moulding Replacement Components - For Regular Cab
G05163018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

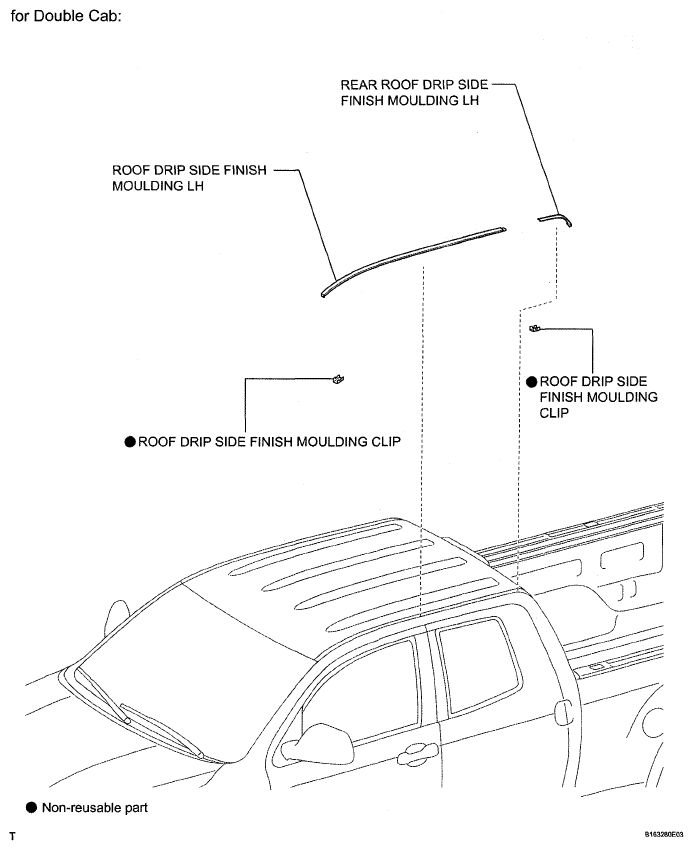

Fig 2: Identifying Roof Drip Side Finish Moulding Replacement Components - For Double Cab
G05163019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

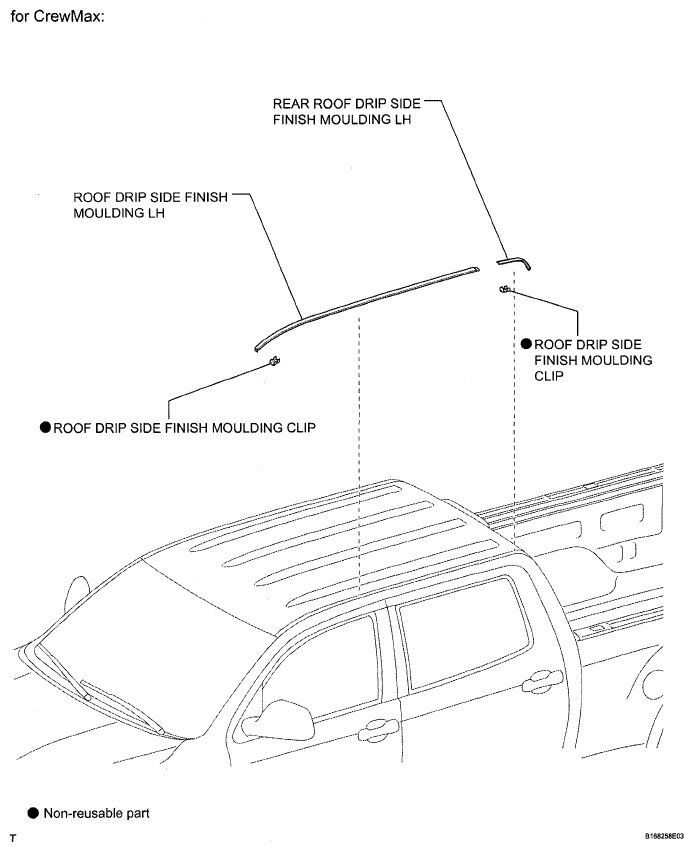

Fig 3: Identifying Roof Drip Side Finish Moulding Replacement Components - For CrewMax
G05163020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
