Rear Body Side Panel Protector: Installation

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR BODY SIDE PANEL PROTECTOR LH
1. for Standard Deck:
  Install the rear body side panel protector.
  1. Attach the 24 clips to install the protector.

    Fig 1: Applying Protective Tape To Outer Circumference Of Protector - For Standard Deck
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for Long Deck:
  Install the rear body side panel protector.
  1. Attach the 28 clips to install the protector.

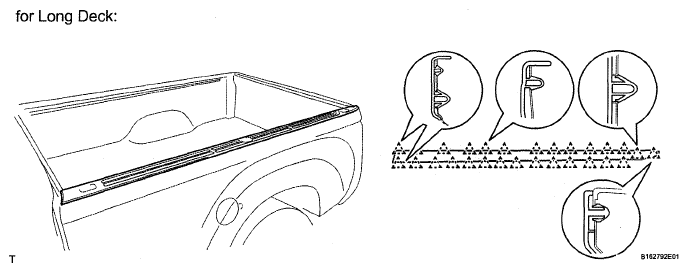

    Fig 2: Identifying Protector Clips - For Long Deck
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. for CrewMax:
  Install the rear body side panel protector.
  1. Attach the 20 clips to install the protector.

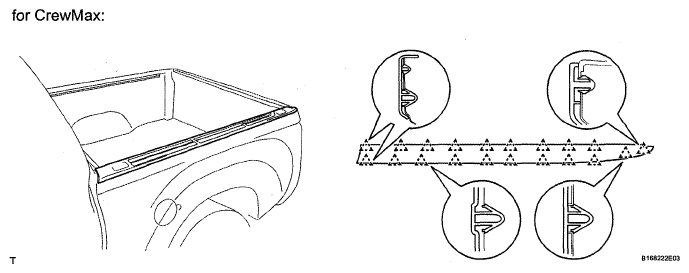

    Fig 3: Identifying Protector Clips - For CrewMax
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BODY SIDE PANEL PROTECTOR RH
HINT:

Use the same procedures described for the LH side.
