Fender Panel Mudguard: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

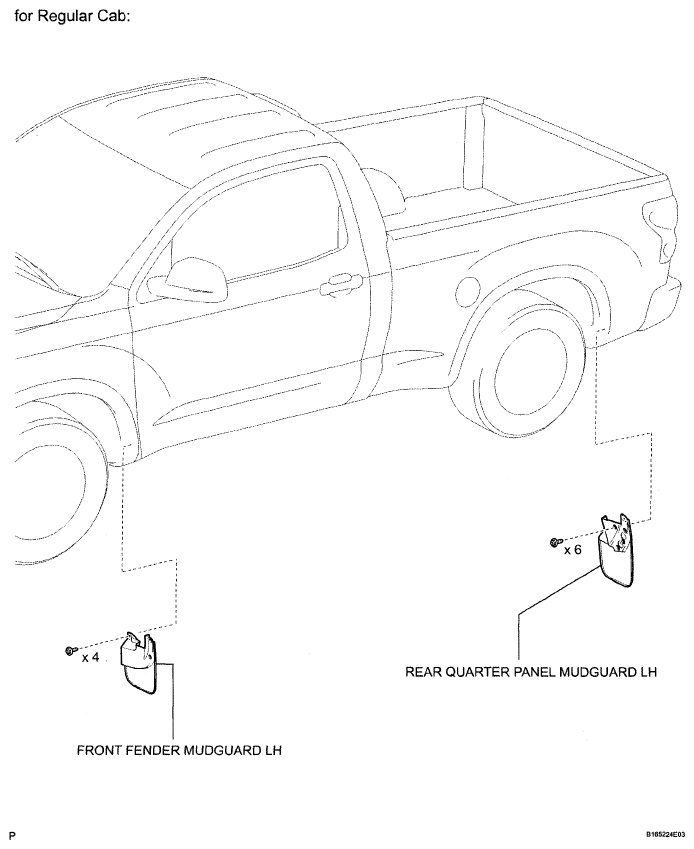

Fig 1: Identifying Fender Panel Mudguard Replacement Components - For Regular Cab

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

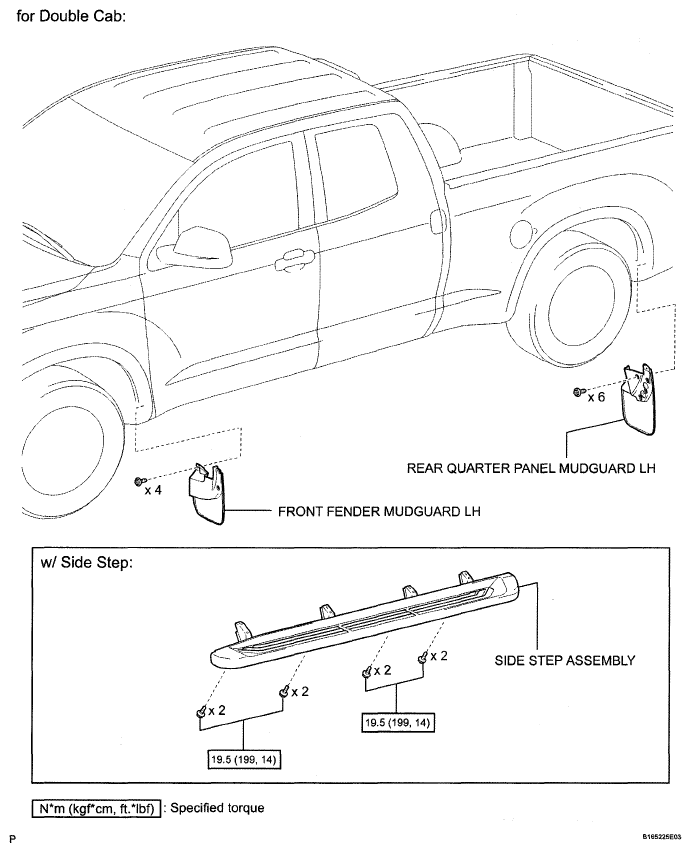

Fig 2: Identifying Fender Panel Mudguard Replacement Components With Torque Specifications - For Double Cab

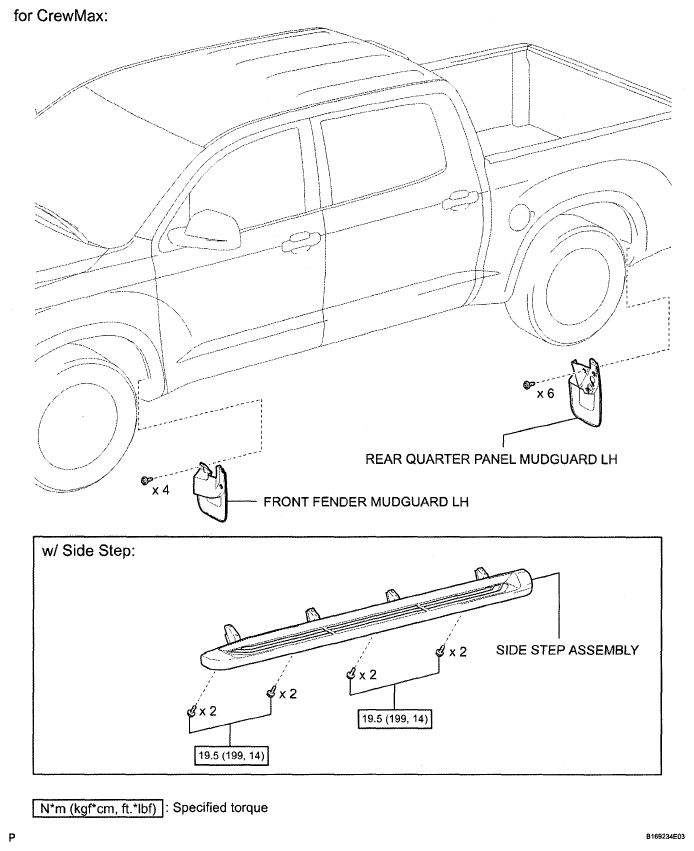

Fig 3: Identifying Fender Panel Mudguard Replacement Components With Torque Specifications - For CrewMax Cab
