Deck Board Rail: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

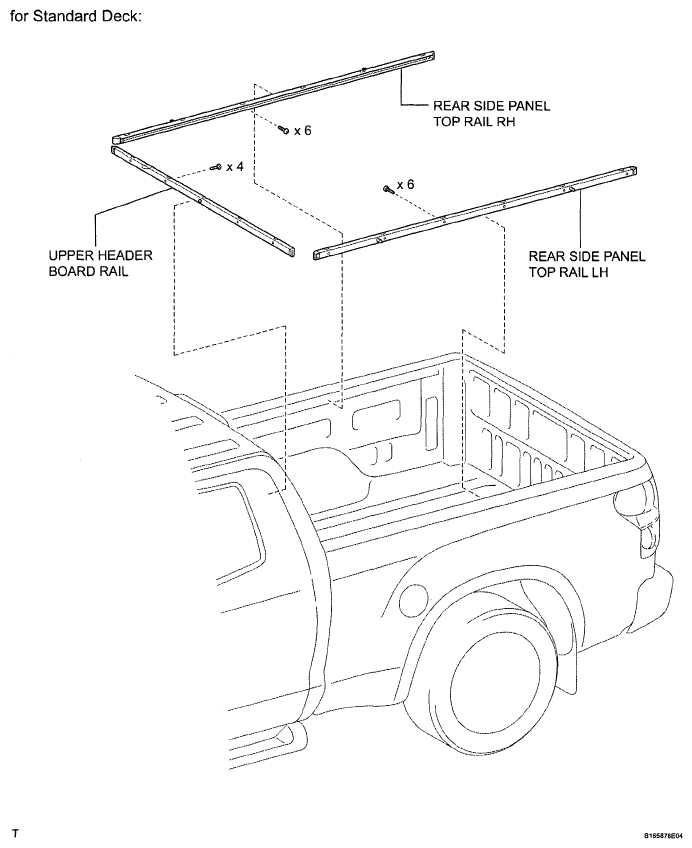

Fig 1: Identifying Deck Board Rail Replacement Components - For Standard Deck
G05163086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

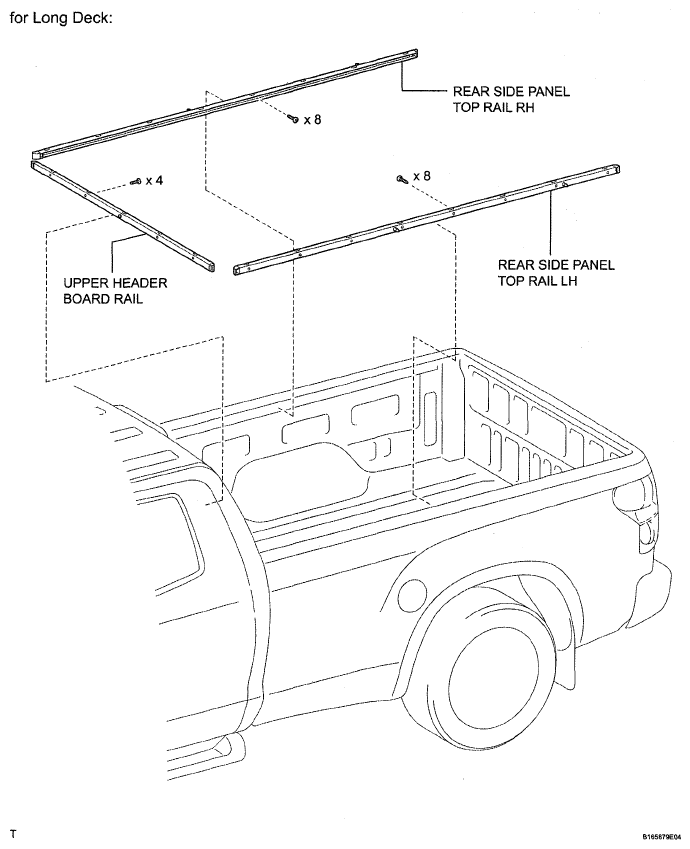

Fig 2: Identifying Deck Board Rail Replacement Components - For Long Deck
G05163087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

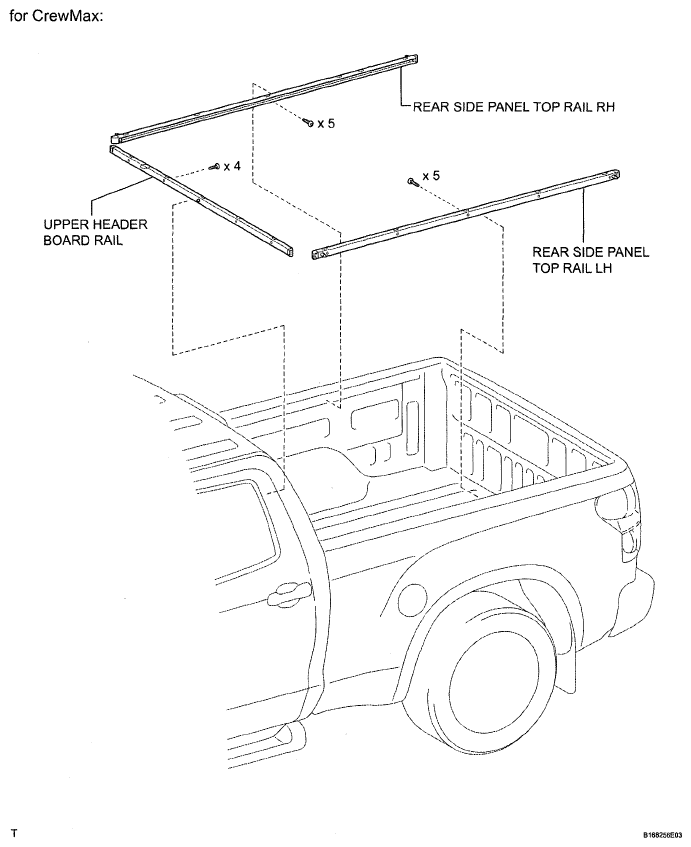

Fig 3: Identifying Deck Board Rail Replacement Components - CrewMax
G05163088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
