Section 1 (Horn)
>>
Horn System
>>
System Diagram
System Diagram
WARNING:
This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

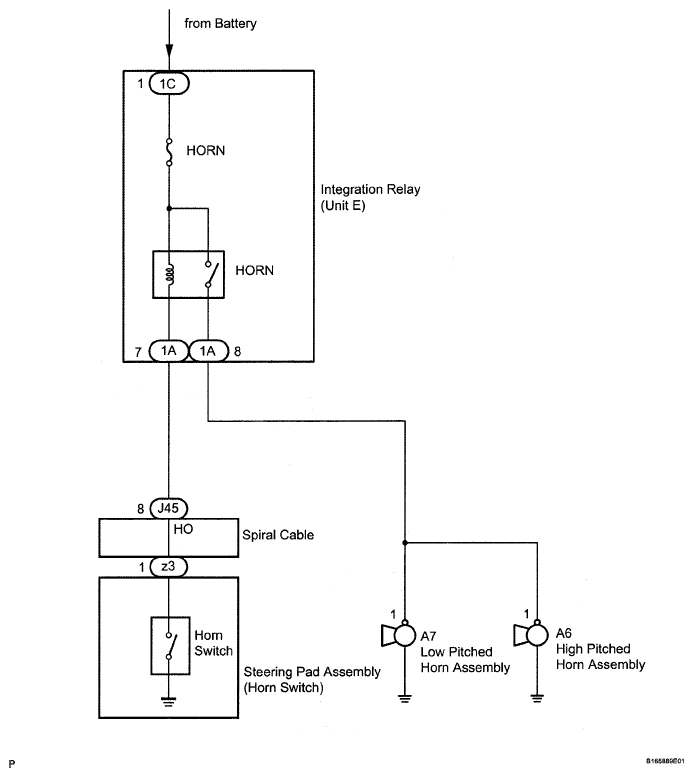

Fig 1: Horn System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
