Oil Pump
>>
Components
Oil Pump: Components

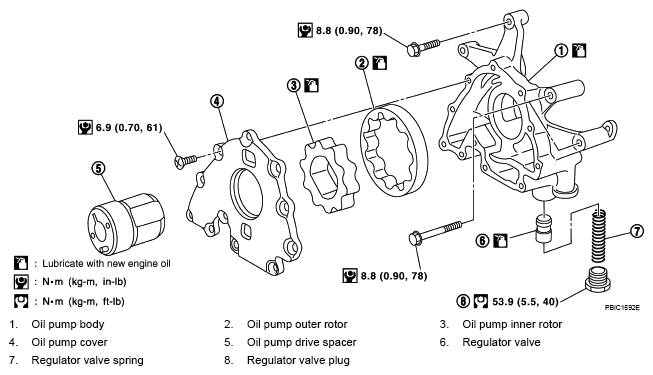

Fig 1: Oil Pump Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
