Wiring Diagram - COMPAS -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

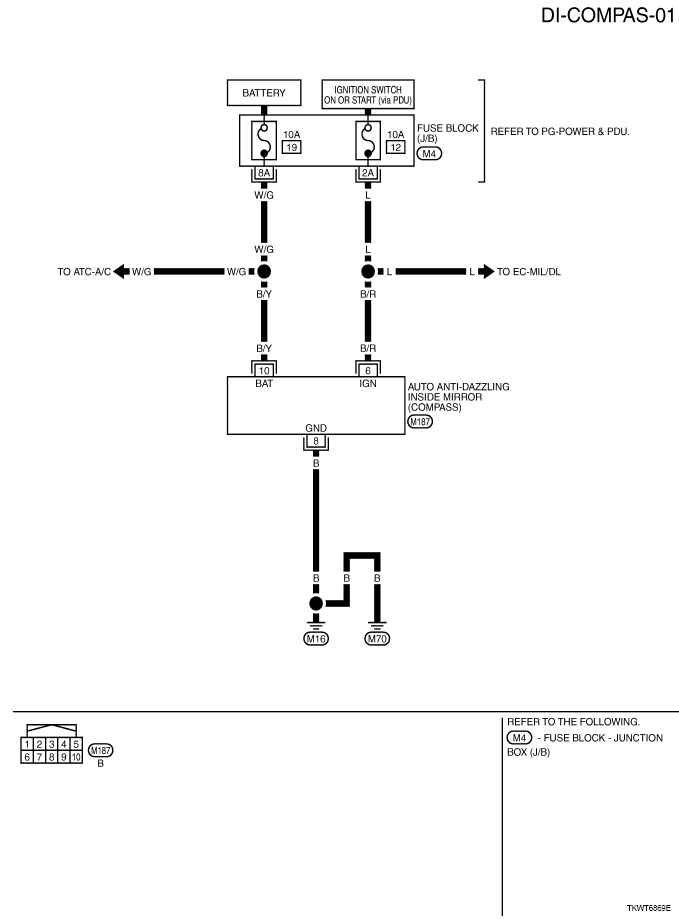

Fig 1: Wiring Diagram (DI-COMPAS-01)

G00469320

Courtesy of NISSAN MOTOR CO., U.S.A.
