System Diagram

WITH NAVIGATION

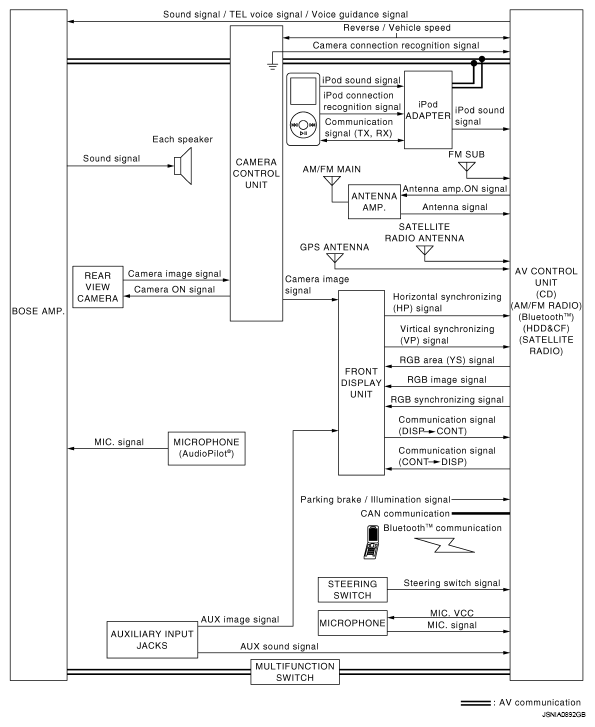

Fig 1: Identifying Multi AV System System Diagram (With Navigation)
G05722001Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.

WITH NAVIGATION AND DVD PLAYER

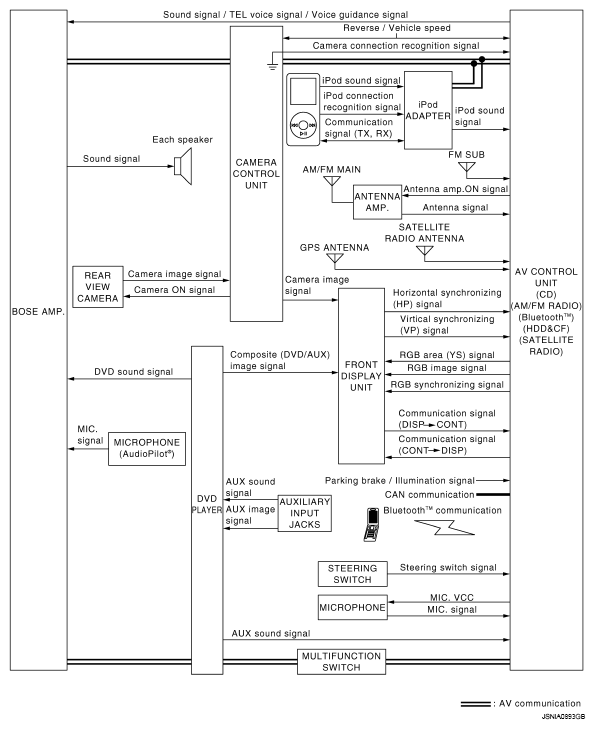

Fig 2: Identifying Multi AV System System Diagram (With Navigation & DVD Player)
G05722002Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
