Switches And Their Control Function

WARNING: This page is about a different car, the 2008 Infiniti FX45 and 2008 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

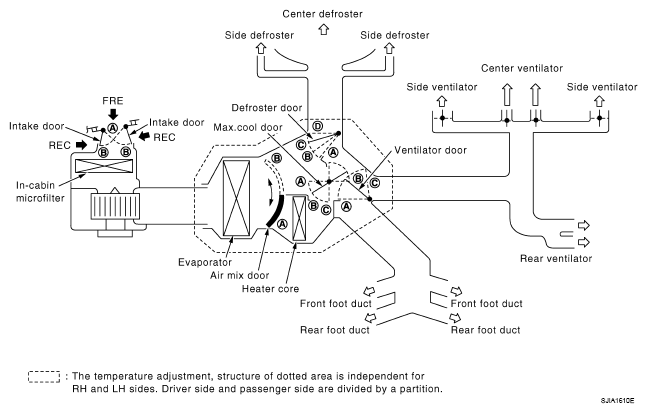

Fig 1: Identifying Switches And Their Control Function Diagram
G05221686Courtesy of NISSAN MOTOR CO., U.S.A.

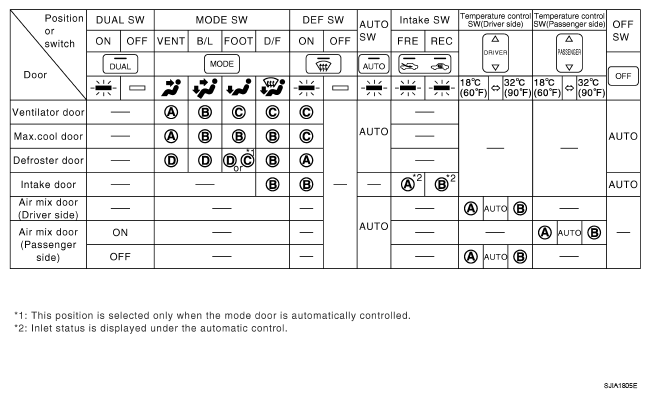

Fig 2: Identifying Switches And Their Control Function Chart
G05221687Courtesy of NISSAN MOTOR CO., U.S.A.
