Outer Mirror Switch: Inspection

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/o Retract Mirror)
    1. Check the resistance.
      1. Select "L" on the left/right adjustment switch.
      2. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        OUTER MIRROR SWITCH ASSEMBLY (W/O RETRACT MIRROR) TESTER CONNECTION SPECIFIED CONDITION CHART

        Tester Connection Condition Specified Condition
        4 (VL) - 8 (B)
        6 (M+) - 7 (E)
        UP Pressed Below 1 Ω
        Not pressed 10 kΩ or higher
        4 (VL) - 7 (E)
        6 (M+) - 8 (B)
        DOWN Pressed Below 1 Ω
        Not pressed 10 kΩ or higher
        5 (HL) - 8 (B)
        6 (M+) - 7 (E)
        LEFT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher
        5 (HL) - 7 (E)
        6 (M+) - 8 (B)
        RIGHT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

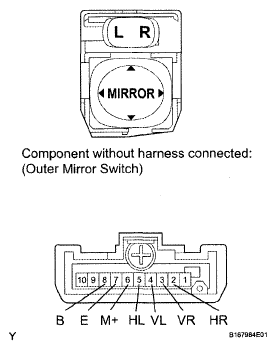

        Fig 1: Inspecting Outer Mirror Switch Assembly (W/O Retract Mirror)
        G05161712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        If the result is not as specified, replace the outer mirror switch.

      3. Select "R" on the left/right adjustment switch.
      4. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        ADJUSTMENT SWITCH TESTER CONNECTION SPECIFIED CONDITION CHART

        Tester Connection Condition Specified Condition
        3 (VR) - 8 (B)
        6 (M+) - 7 (E)
        UP Pressed Below 1 Ω
        Not pressed 10 kΩ or higher
        3 (VR) - 7 (E)
        6 (M+) - 8 (B)
        DOWN Pressed Below 1 Ω
        Not pressed 10 kΩ or higher
        2 (HR) - 8 (B)
        6 (M+) - 7 (E)
        LEFT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher
        2 (HR) - 7 (E)
        6 (M+) - 8 (B)
        RIGHT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        If the result is not as specified, replace the outer mirror switch.

  2. INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/ Retract Mirror)
    1. Inspect the outer mirror switch.
      1. Select "L" on the left/right adjustment switch.
      2. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        OUTER MIRROR SWITCH ASSEMBLY (W/ RETRACT MIRROR) TESTER CONNECTION SPECIFIED CONDITION CHART

        Tester Connection Condition Specified Condition
        4 (VL) - 8 (B)
        6 (M+) - 7 (E)
        UP Pressed Below 1 Ω
        Not pressed 10 kΩ or higher
        4 (VL) - 7 (E)
        6 (M+) - 8 (B)
        DOWN Pressed Below 1 Ω
        Not pressed 10 kΩ or higher
        5 (HL) - 8 (B)
        6 (M+) - 7 (E)
        LEFT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher
        5 (HL) - 7 (E)
        6 (M+) - 8 (B)
        RIGHT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

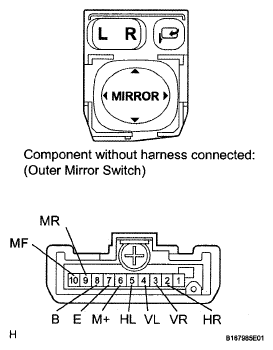

        Fig 2: Inspecting Outer Mirror Switch Assembly (W/ Retract Mirror)
        G05161713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        If the result is not as specified, replace the outer mirror switch.

      3. Select "R" on the left/right adjustment switch.
      4. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        ADJUSTMENT SWITCH TESTER CONNECTION SPECIFIED CONDITION CHART

        Tester Connection Condition Specified Condition
        3 (VR) - 8 (B)
        6 (M+) - 7 (E)
        UP Pressed Below 1 Ω
        Not pressed 10 kΩ or higher
        3 (VR) - 7 (E)
        6 (M+) - 8 (B)
        DOWN Pressed Below 1 Ω
        Not pressed 10 kΩ or higher
        2 (HR) - 8 (B)
        6 (M+) - 7 (E)
        LEFT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher
        2 (HR) - 7 (E)
        6 (M+) - 8 (B)
        RIGHT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        If the result is not as specified, replace the outer mirror switch.

    2. Inspect the retract switch.
      1. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        RETRACT SWITCH TESTER CONNECTION SPECIFIED CONDITION CHART

        Tester Connection Condition Specified Condition
        8 (B) - 9 (MR)
        10 (MF) - 7 (E)
        Pressed (Retracts) Below 1 Ω
        Not pressed 10 kΩ or higher
        8 (B) - 10 (MF)
        7 (E) - 9 (MR)
        Pressed (Driving position) Below 1 Ω
        Not pressed 10 kΩ or higher

        If the result is not as specified, replace the outer mirror switch.

  3. INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/ Memory)
    1. Inspect the outer mirror switch.
      1. Select "L" on the left/right adjustment switch.
      2. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        OUTER MIRROR SWITCH ASSEMBLY (W/ MEMORY) TESTER CONNECTION SPECIFIED CONDITION CHART

        Tester Connection Condition Specified Condition
        3 (M+) - 2 (E) UP Pressed 100 Ω
        Not pressed 10 kΩ or higher
        3(M+)-2(E) DOWN Pressed 470 Ω
        Not pressed 10 kΩ or higher
        3(M+)-2(E) LEFT Pressed 800 Ω
        Not pressed 10 kΩ or higher
        3 (M+) - 2 (E) RIGHT Pressed 250 Ω
        Not pressed 10 kΩ or higher
        1 (MSE) - 2 (E)) L switch Pressed 100 Ω
        Not pressed 10 kΩ or higher

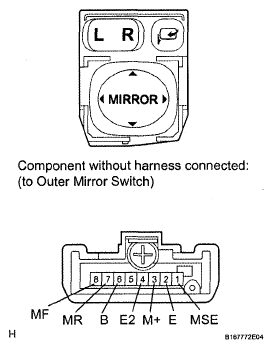

        Fig 3: Inspecting Outer Mirror Switch Assembly (W/ Memory)
        G05161714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        If the result is not as specified, replace the outer mirror switch.

      3. Select "R" on the left/right adjustment switch.
      4. Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.

        Standard resistance

        ADJUSTMENT SWITCH TESTER CONNECTION SPECIFIED CONDITION CHART

        Tester Connection Condition Specified Condition
        3 (M+) - 2 (E) UP Pressed 100 Ω
        Not pressed 10 kΩ or higher
        3 (M+) - 2 (E) DOWN Pressed 470 Ω
        Not pressed 10 kΩ or higher
        3 (M+) - 2 (E) LEFT Pressed 800 Ω
        Not pressed 10 kΩ or higher
        3 (M+) - 2 (E) RIGHT Pressed 250 Ω
        Not pressed 10 kΩ or higher
        1 (MSE) - 2 (E)) R switch Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        If the result is not as specified, replace the outer mirror switch.

    2. Inspect the retract switch.
      1. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        RETRACT SWITCH TESTER CONNECTION SPECIFIED CONDITION CHART

        Tester Connection Condition Specified Condition
        6 (B) - 7 (MR)
        8 (MF) - 4 (E2)
        Pressed (Retracts) Below 1 Ω
        Not pressed 10 kΩ or higher
        6 (B) - 8 (MF)
        4 (E2) - 7 (MR)
        Pressed (Driving position) Below 1 Ω
        Not pressed 10 kΩ or higher

        If the result is not as specified, replace the outer mirror switch.
