How To Proceed With Troubleshooting

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This is a flowchart for vehicle pull.

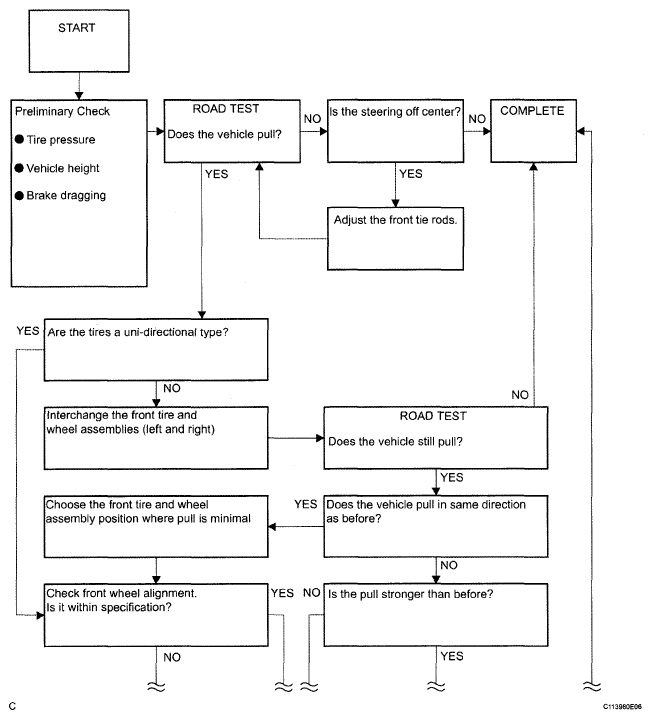

Fig 1: Troubleshooting Flow Chart (1 Of 2)
G05159559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

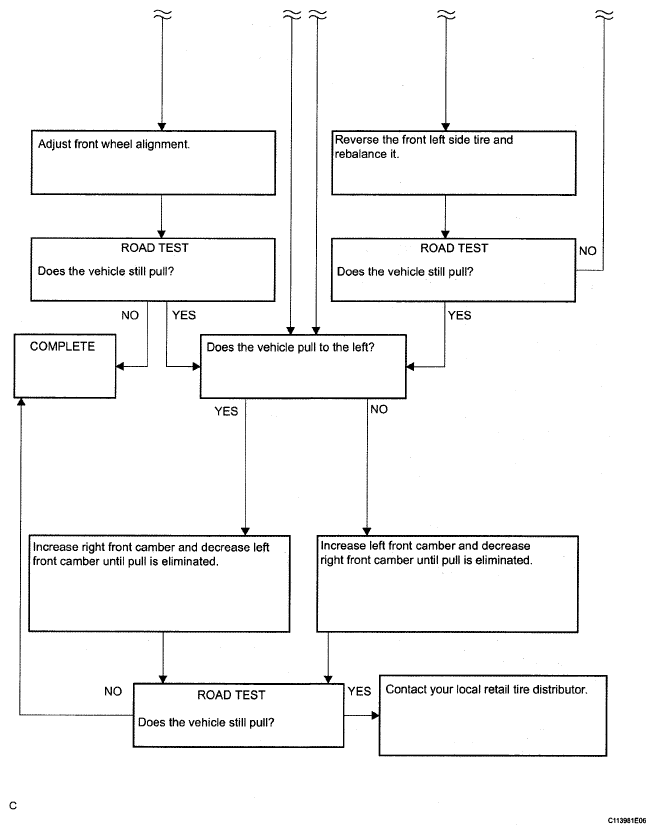

Fig 2: Troubleshooting Flow Chart (2 Of 2)
G05159560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
