Front Shock Absorber: Reassembly

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT COIL SPRING LH
1. Using SST, compress the coil spring.
  SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)
  NOTE:
  - Do not compress the coil spring more than necessary.
  - Do not use an impact wrench. It will damage SST.
2. Install the coil spring to the shock absorber.

  Fig 2: Identifying Coil Spring To Shock Absorber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Fit the lower end of the coil spring into the recess of the spring seat of the shock absorber.
INSTALL FRONT SUSPENSION SUPPORT SUB-ASSEMBLY LH
1. Install the 2 cushions, 2 retainers and suspension support to the piston rod.
2. Temporarily install a new suspension support to front shock absorber nut.
3. Position the suspension support as shown in the illustration.

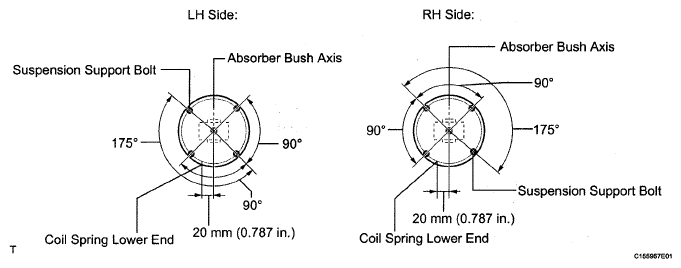

  Fig 3: Positioning Suspension Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove SST.
  NOTE: Do not use an impact wrench. It will damage the shock absorber rod.

  HINT:

  Release the coil spring while checking the position of the suspension support.
TIGHTEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT
1. Tighten the nut.
  Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)
