Front Shock Absorber: Disposal

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISPOSE OF FRONT SHOCK ABSORBER ASSEMBLY LH
    1. Fully extend the shock absorber rod.
    2. Using a drill, make a hole in the cylinder between A and B shown in the illustration to discharge the gas inside.

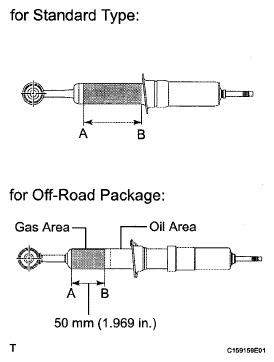

      Fig 1: Drilling Hole In Cylinder Between A And B
      G05159582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CAUTION:
      • Be careful when drilling because shreds of metal may fly about. Always use the proper safety equipment.
      • For off road type shock absorbers, be extremely careful when drilling it as its gas pressure is much higher than the standard type.
      NOTE: The gas is colorless, odorless and nonpoisonous.
