Glove Box Light: Inspection
WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

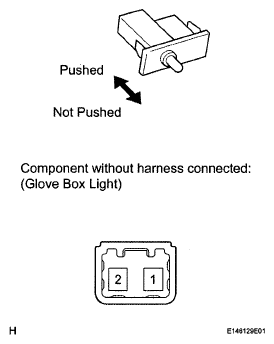

- INSPECT GLOVE BOX LIGHT ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
GLOVE BOX LIGHT ASSEMBLY
| Tester Connection |
Switch Condition |
Specified Condition |
| 1 - 2 |
Pushed |
10 kΩ or higher |
| Not pushed |
Below 1 Ω |
If the result is not as specified, replace the light assembly.
