Power Steering Gear: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

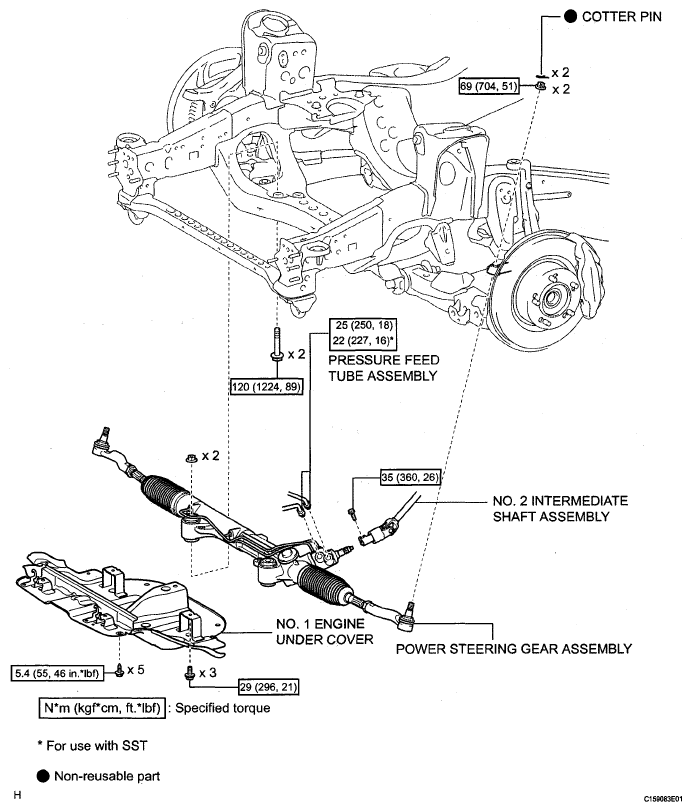

Fig 1: Identifying Power Steering Gear Replacement Components And Torque Specifications (1 Of 2)
G05160387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

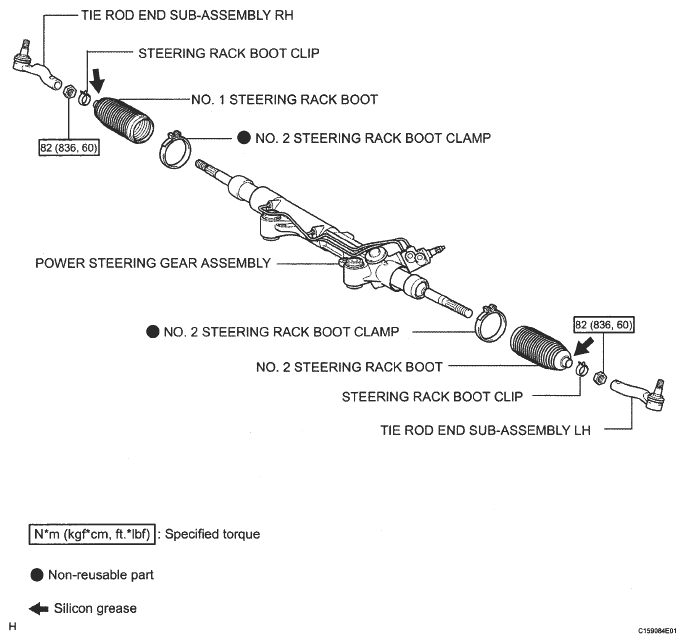

Fig 2: Identifying Power Steering Gear Replacement Components And Torque Specifications (2 Of 2)
G05160388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
