Fuel Tank: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

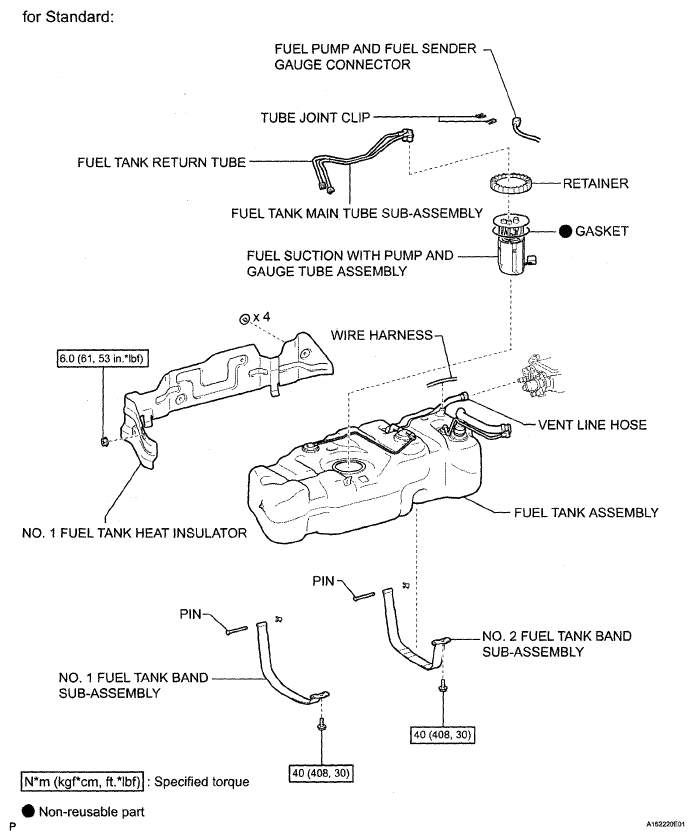

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
G05152073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

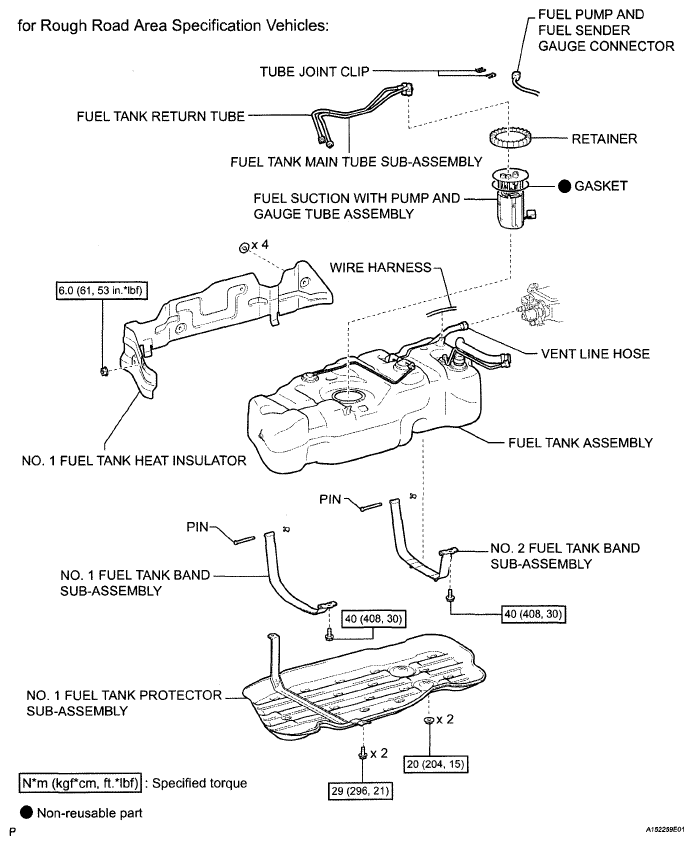

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 3)
G05152074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
G05151922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
