Fuel Injector: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

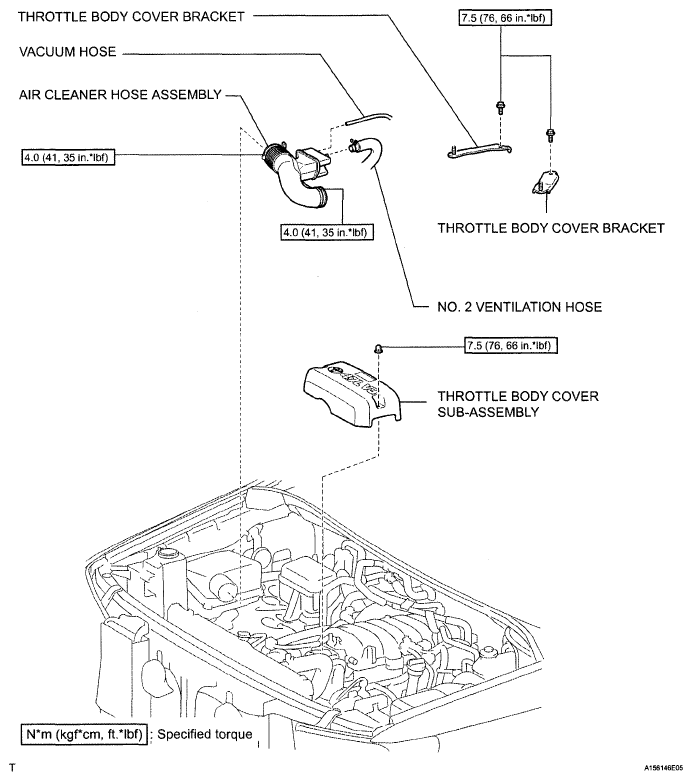

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 2)
G05152129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

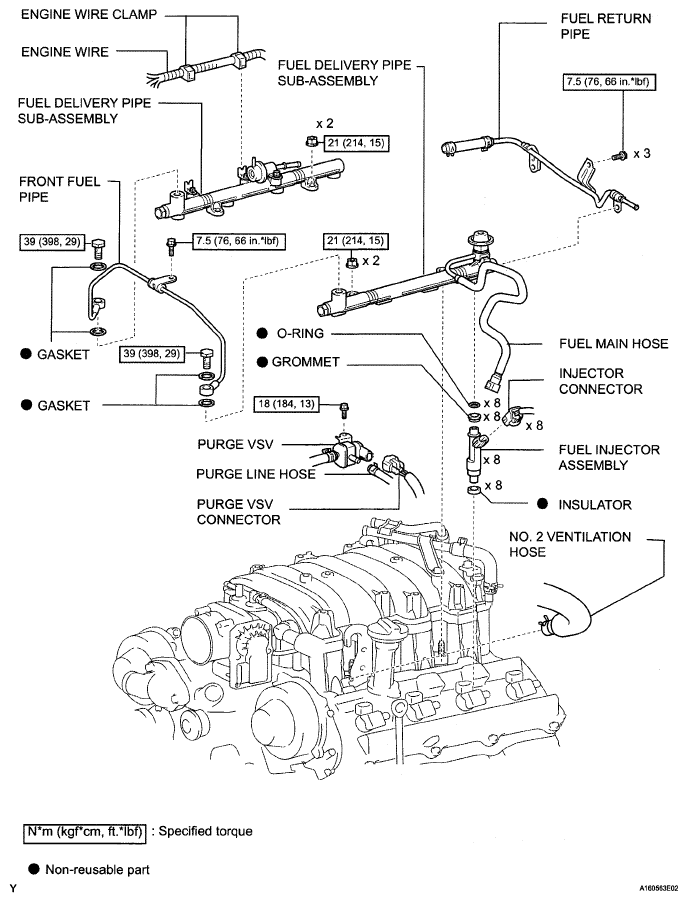

Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 2)
G05152130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
